Bellfire LTS

$2,399.00$7,129.00

Light Tactical Shield Level IIIA

SKU: LTS

Request Quote
Register to Buy Online
Categories: , ,

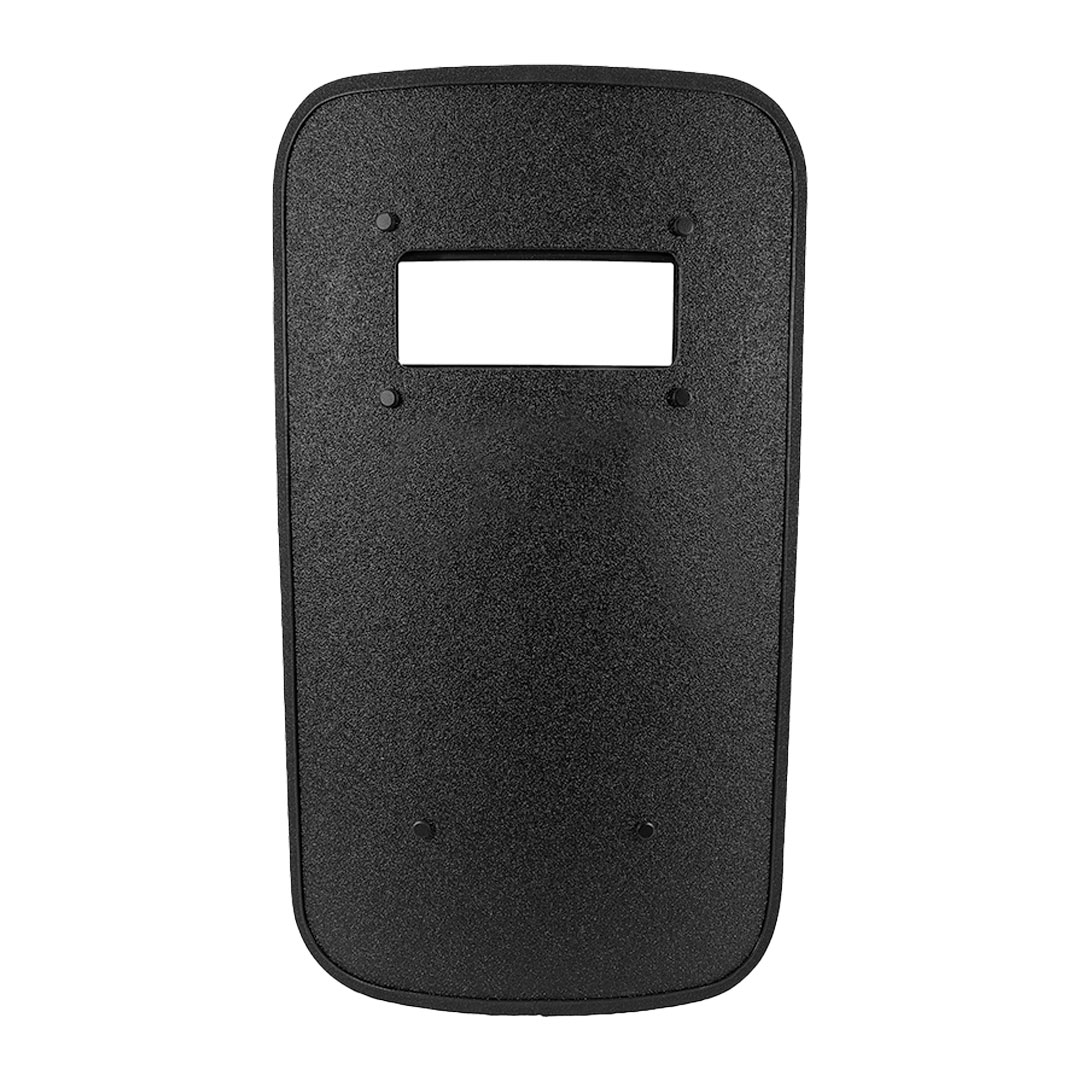

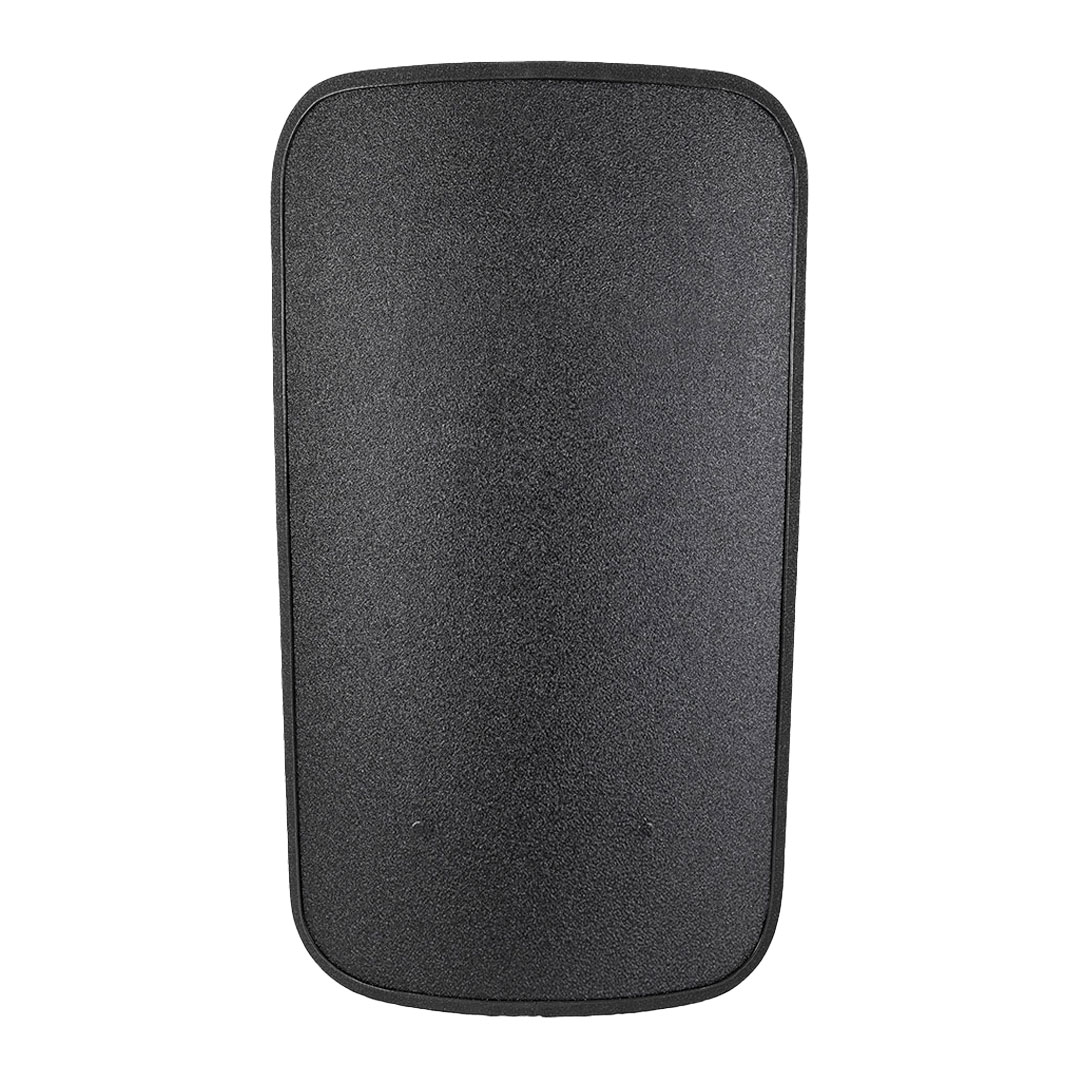

The Bellfire LTS™ (Light Tactical Shield) is available in both threat levels IIIA and III. Engineered from a UHMWPE based material, the LTS has been independently tested by an NVLAP accredited NIJ approved laboratory to meet or exceed ballistic resistance as specified under NIJ Standard 0108.01. The multi- hit LTS shield comes standard with a C-Handle, 4″x10″ ballistic viewport and shoulder strap and carry bag. Optional handle LED light combinations are available as an upgrade.

  • Protection: Level IIIA stand alone against handgun rounds or Level III stand alone against rifle rounds
  • NIJ Standard 0108.01 TESTED: This product has been independently tested by an NVLAP accredited NIJ approved laboratory to meet or exceed ballistic resistance as specified under NIJ Standard 0108.01
  • Material: UHMWPE based material
  • Exterior Cover:  Polyurea with Rhino Extreme 1150Fr Anti Spall Coated System
  • Ballistic Viewport: 4” x 10”

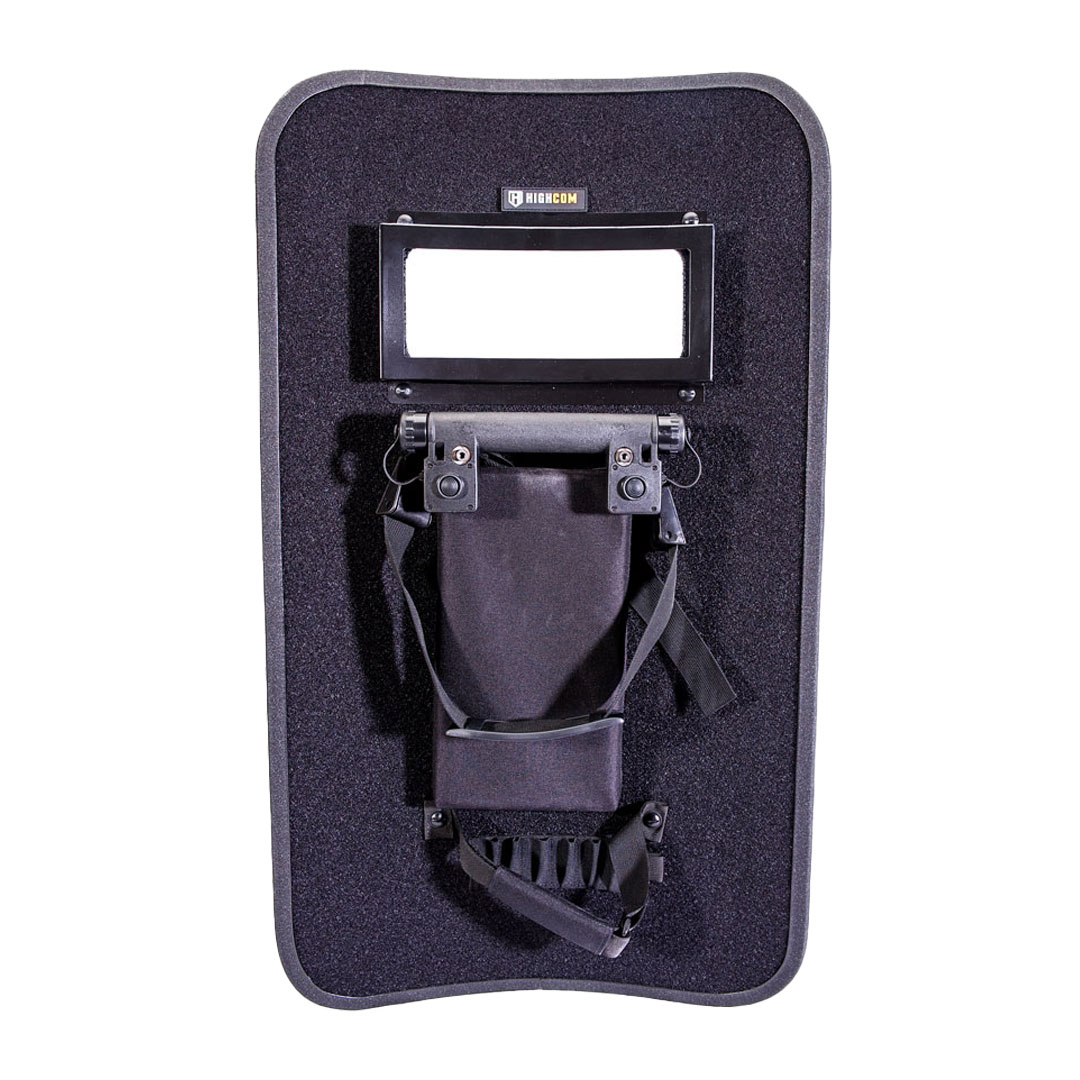

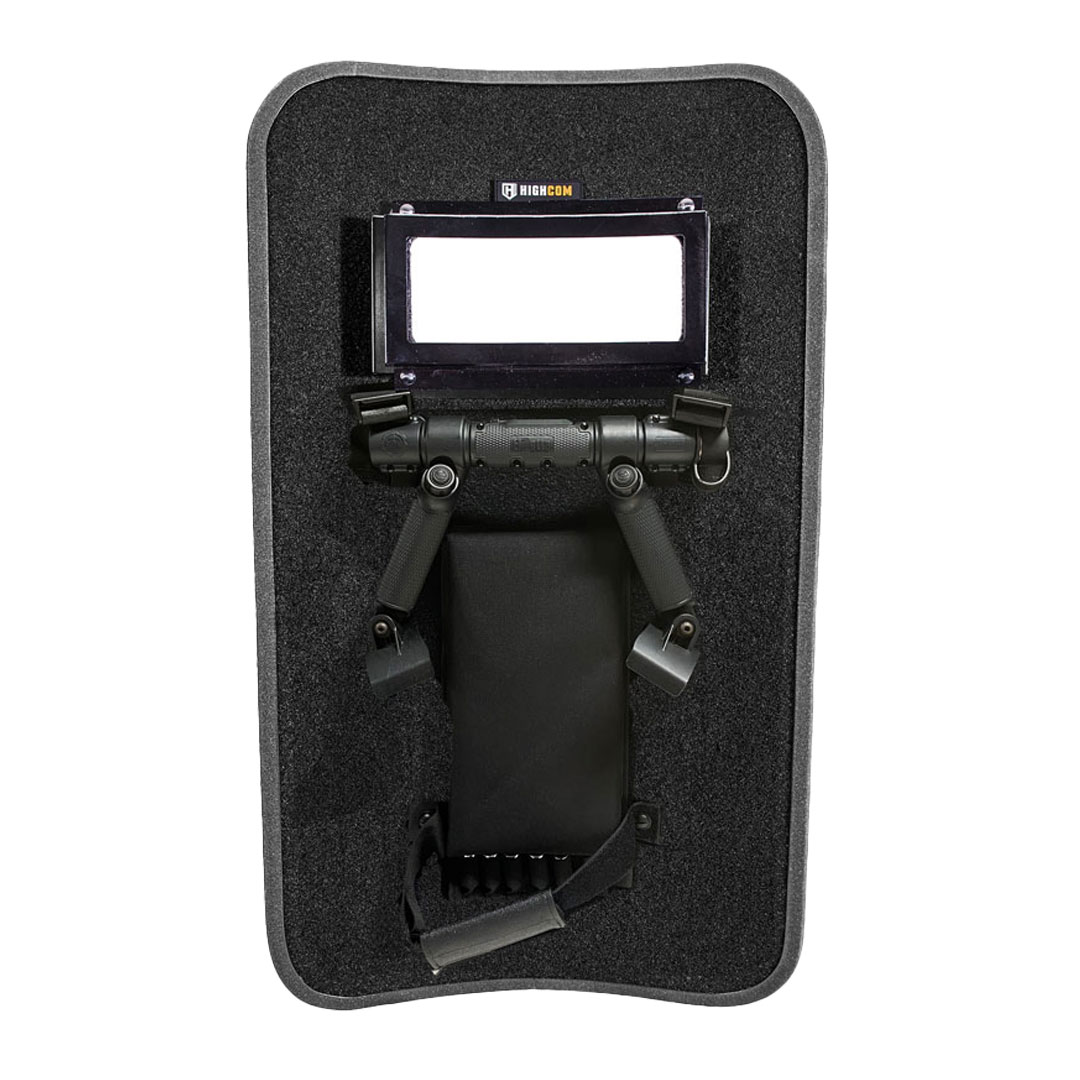

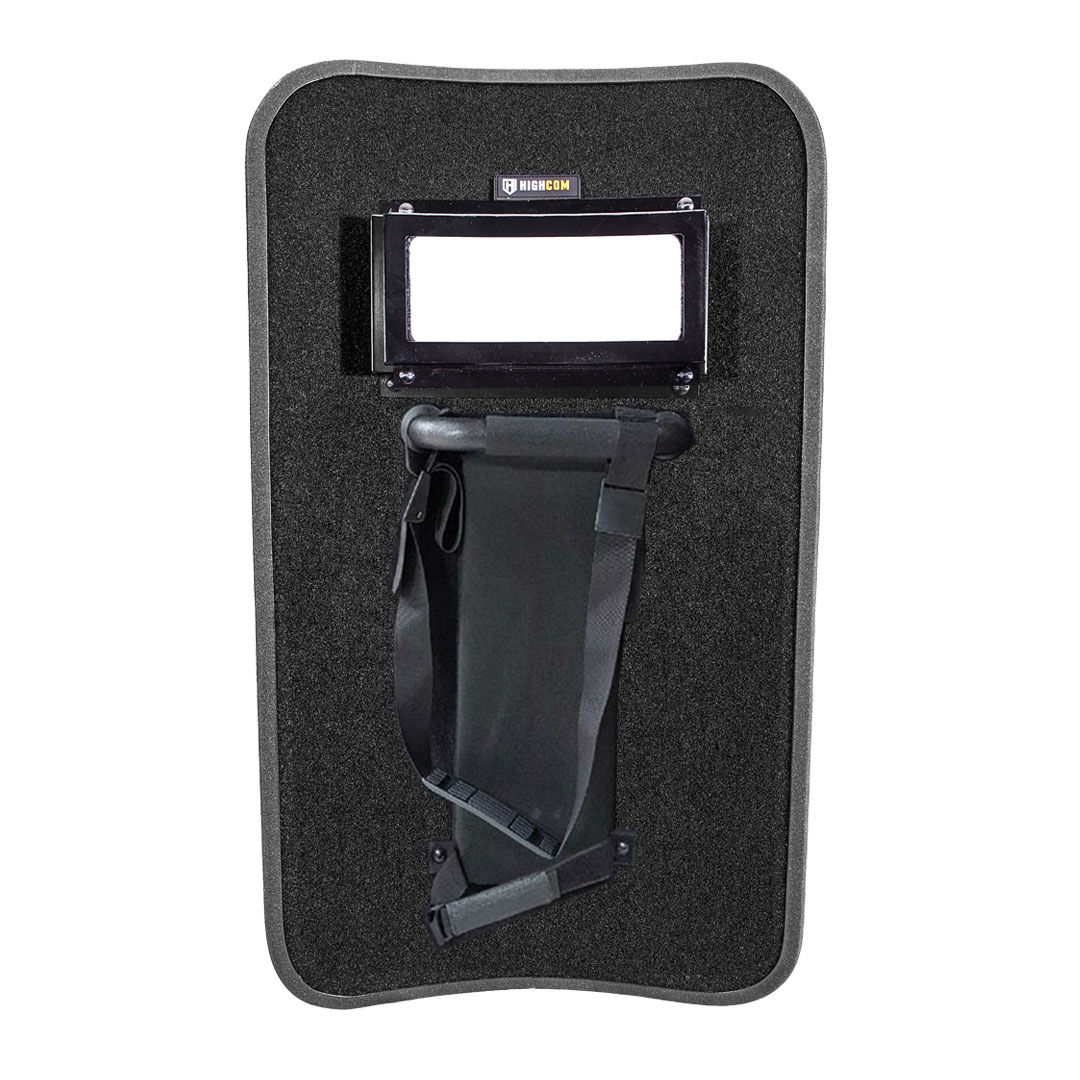

  • Handle: Shield comes standard with HighCom C-Handle which is ambidextrous. The shield does not come standard with a mounted light. View shield light and handle options here.
  • Multi-hit capability NIJ 0108.01
  • Color: Black with transparent viewport
  • Quick-release: Shoulder strap and shield carrying bag

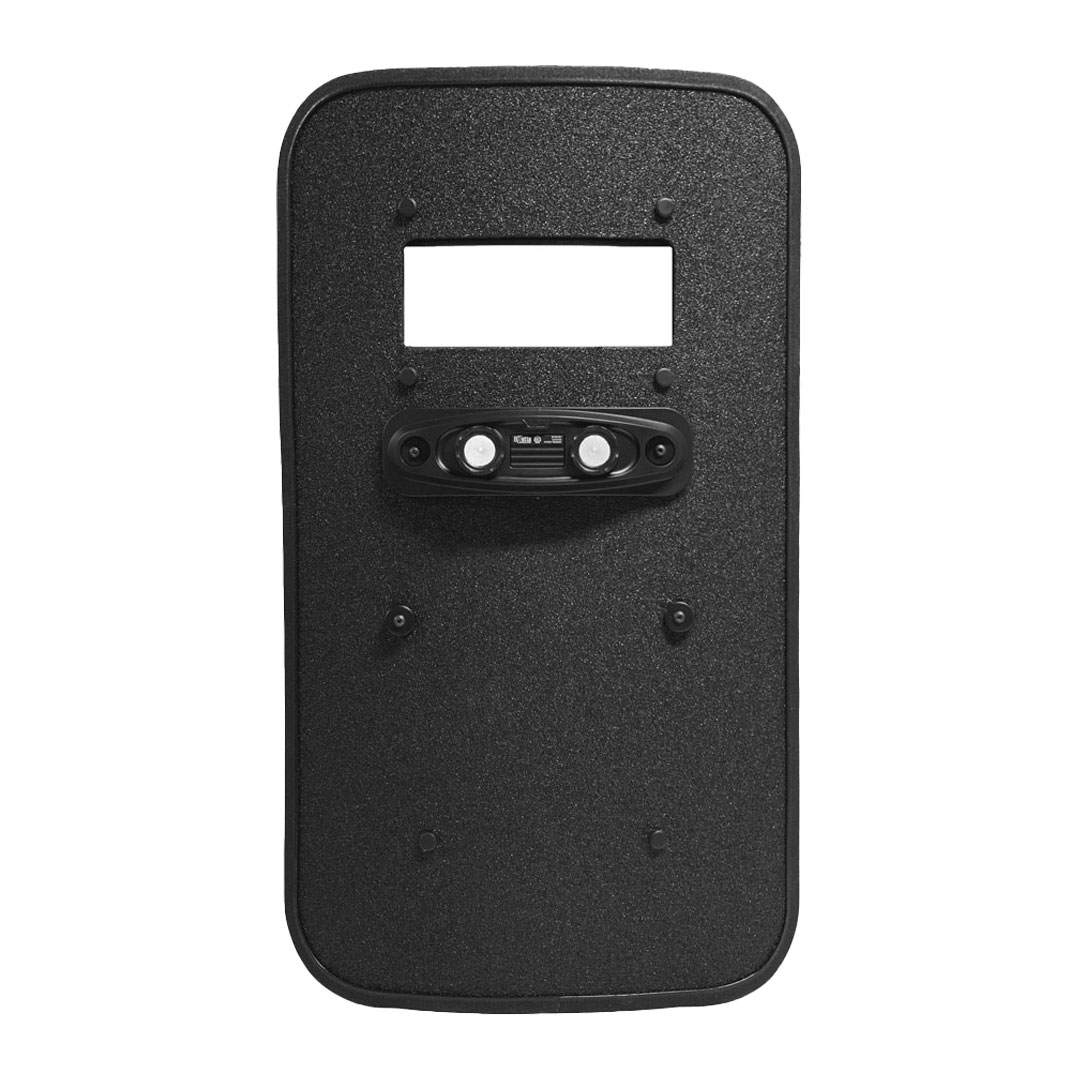

  • Optional LED Light: multiple options available, view here
  • Warranty: 5 years on all ballistic material excluding exterior cover and 1 year on exterior cover material and workmanship
SIZEWEIGHT (NO VIEWPORT)WEIGHT (WITH VIEWPORT)
18 x 245 lbs / 2.4 kg8 lbs / 3.6 kg
20 x 348 lbs / 3.6 kg11 lbs / 5.2 kg
20 x 409 lbs / 4.2 kg13 lbs / 5.8 kg
24 x 3610 lbs / 4.5 kg13 lbs / 6.1 kg
24 x 4813 lbs / 5.9 kg17 lbs / 7.5 kg
24 x 5114 lbs / 6.3 kg17 lbs / 7.8 kg
SIZEWEIGHT (NO VIEWPORT)WEIGHT (WITH VIEWPORT)
18 x 24 14 lbs / 6.4 kg22 lbs / 9.9 kg
20 x 3422 lbs / 9.9 kg30 lbs / 13.8 kg
20 x 40 26 lbs / 11.6 kg34 lbs / 15.5 kg
24 x 36 28 lbs / 12.5 kg36 lbs / 16.4 kg
24 x 48 37 lbs / 16.6 kg45 lbs / 20.5 kg
24 x 51 39 lbs / 17.6 kg47 lbs / 21.5 kg
STANDARDWEAPONPROJECTILEGRVEL FT/SVEL M/S(+/- ft/s)
NIJ 0108.01Handgun.357 Magnum Jacketed Soft Point (JSP)1581395425(+/- 50)
NIJ 0108.01Handgun9mm Full Metal Jacketed Round Nose (FMJ RN)1241400427(+/- 50)
NIJ 0108.01Handgun.44 Magnum Lead SWC Gas Checked2401400427(+/- 50)
SpecialHandgun9mm Full Metal Jacketed Round Nose (FMJ RN)1241400427(+/- 50)
SpecialHandgun.40 S&W, Speer Gold Dot Hollow Point (GDHP) 165940287(+/- 50)
SpecialHandgun9mm Luger, Speer Gold Dot II1471015309(+/- 50)
SpecialHandgun9mm +P+ (SXT)1271340408(+/- 30)
SpecialHandgun.40 S&W JHP, Speer Gold Dot (GDHP)1801240378(+/- 30)
SpecialHandgun9mm Luger JHP, Speer Gold Dot1471136346(+/- 50)
SpecialHandgun5.7 x 28mm SS195, Lead Free Hollow Point (LFHP)272000610(+/- 30)
SpecialHandgun5.7 x 28mm SS197, Hornady V-Max Blue Tip401790546(+/- 30)
STANDARDWEAPONPROJECTILEGRVEL FT/SVEL M/S(+/- ft/s)
NIJ 0108.01Rifle7.62 mm FMJ, steel jacketed bullets (M80)1472750838(+/- 50)
SpecialRifle7.62 x 39mm Mild Steel Core1232400732(+/- 50)
SpecialRifle5.56 x 45mm M193 FMJ553250991(+/- 50)
SpecialRifle.223 Remington Tactical Bonded Soft Point622600792(+/- 50)
