Guardian 34i1

$239.00$509.00

LEVEL III/IV ICW IIIA SOFT ARMOR

SKU: 34i1

Request Quote
Register to Buy Online
Categories: , ,

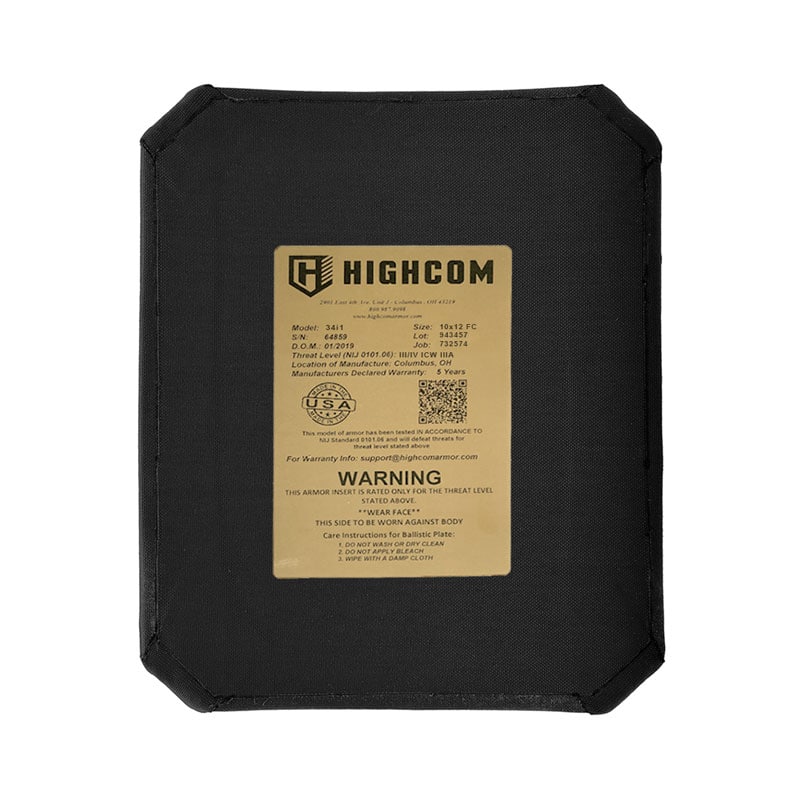

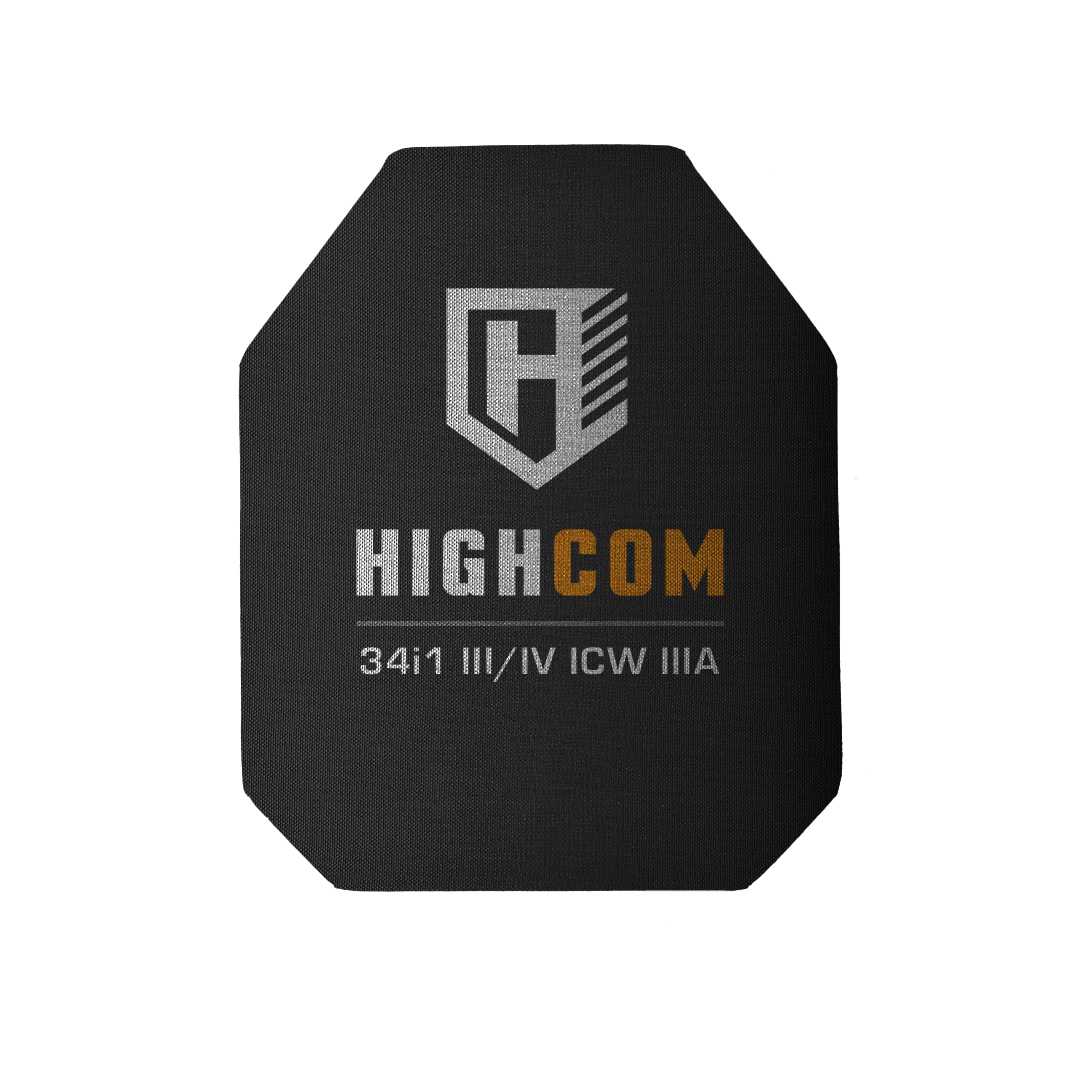

The Guardian 34i1™ is a level III stand alone and Level IV ICW IIIA soft armor rifle armor insert. The 34i1 is constructed with ceramic and UHMWPE and has been tested to the NIJ 0101.06 standard.

  • Protection: Level III/IV ICW Level IIIA Soft Armor (High-Velocity Rifle Rounds and Armor Piercing Threats)
  • NIJ Standard 0101.06 TESTED: This product has been independently tested by an NVLAP accredited NIJ approved laboratory to meet or exceed ballistic resistance as specified under NIJ Standard 0101.06
  • Multi Curve: is sold as independently tested according to NIJ 0101.06 standard
  • RST: Rifle Special Threats Validated
  • Material: Ceramic + UHMWPE
  • Exterior Cover: 1000D CORDURA®, Textured Nylon
  • Thinness: 0.85”

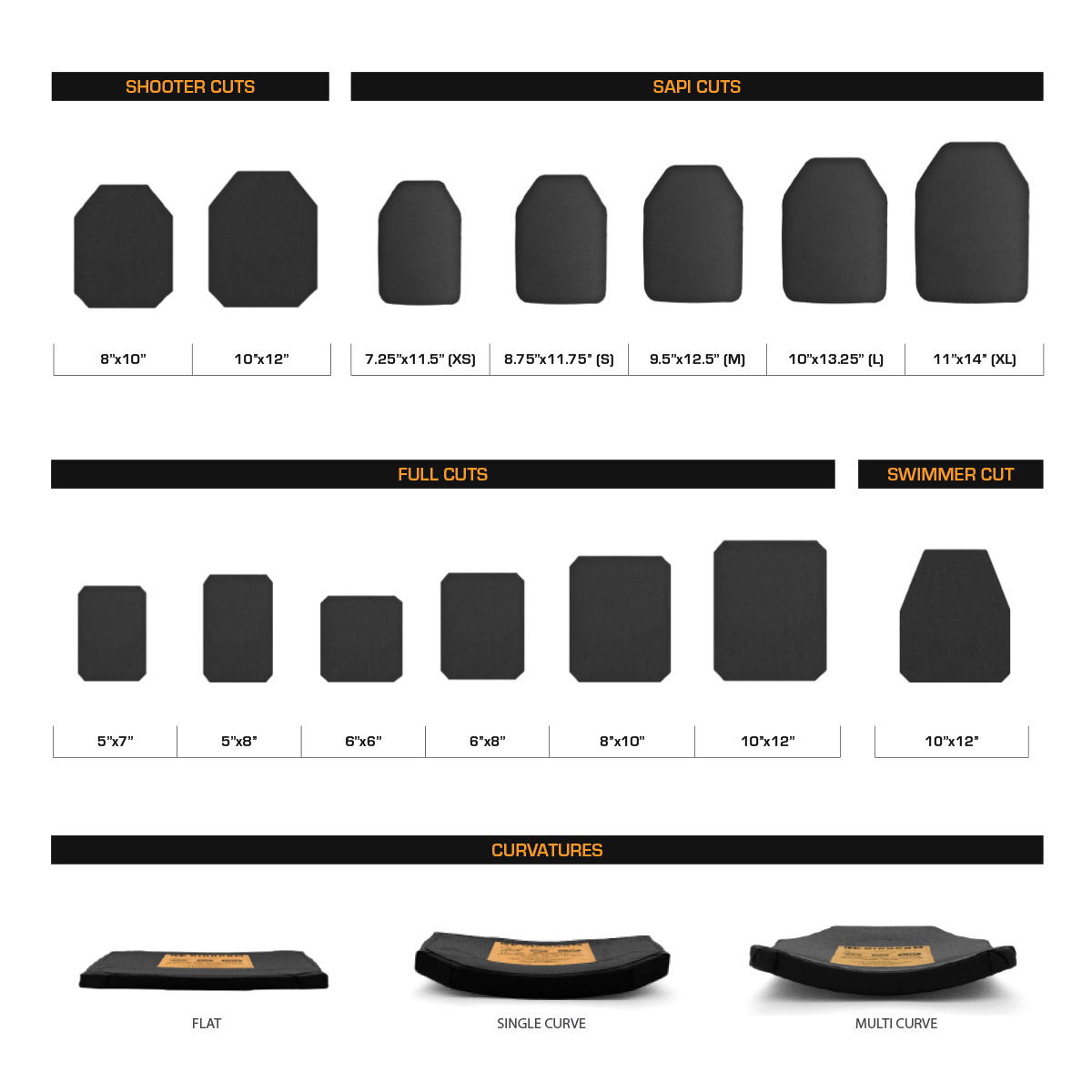

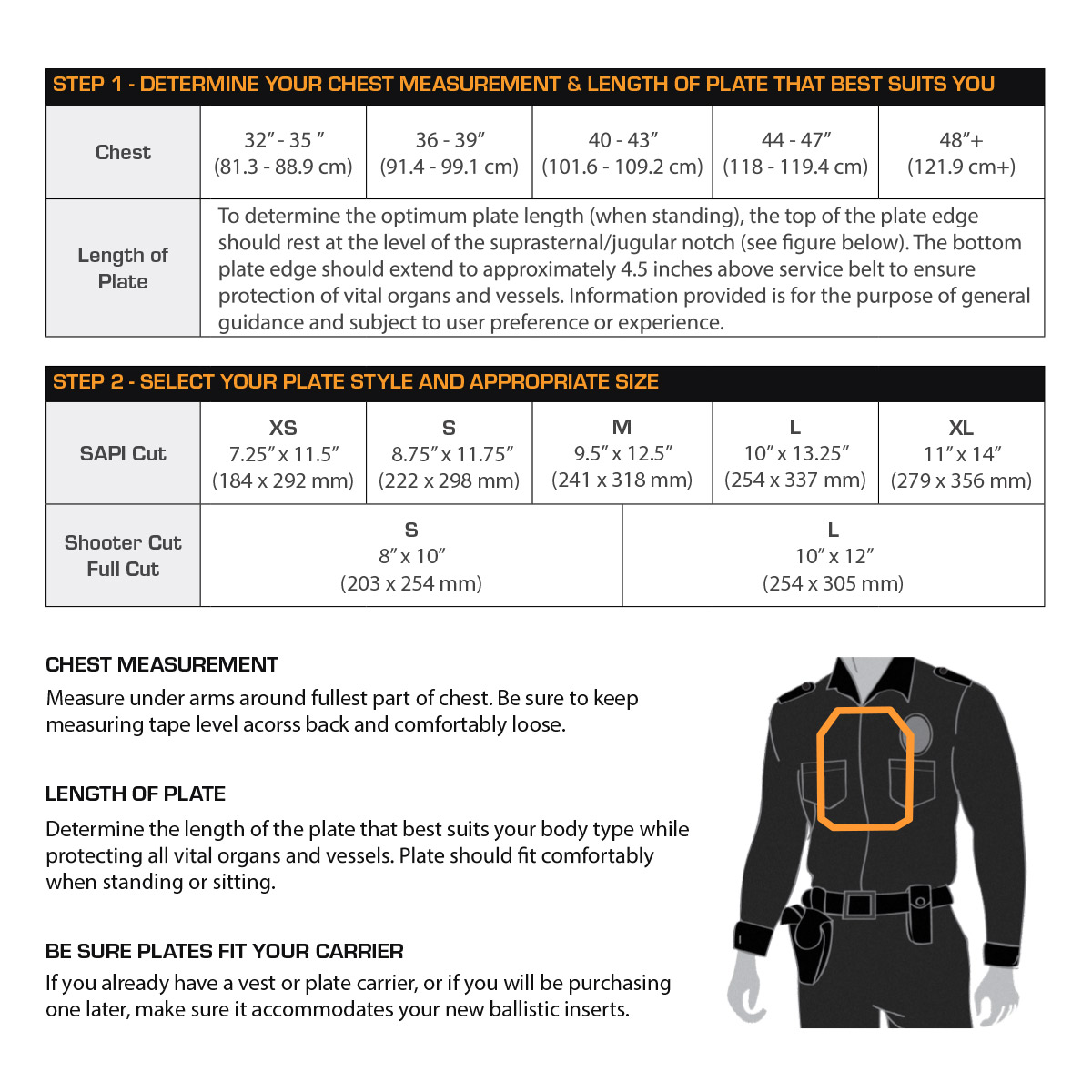

  • Cut: Available in Shooters, Swimmers, SAPI, and Full (10” x 12” shooters cut is considered nominal 9.5” x 11.5” dimensions)
  • Warranty: 5 years on all ballistic material excluding exterior cover and 1 year on exterior cover material and workmanship
Size Curvature Cut Weight
5 x 7Single CurveFull2.3 lbs / 1.1 kg
5 x 8Single CurveFull2.7 lbs / 1.2 kg
6 x 6Single CurveFull2.2 lbs / 1.0 kg
6 x 8Single CurveFull3.1 lbs / 1.4 kg
8 x 10Single CurveFull5.2 lbs / 2.3 kg
8 x 10Single CurveShooters5.0 lbs / 2.3 kg
10 x 12Single CurveFull7.7 lbs / 3.5 kg
10 x 12Single CurveShooters6.5 lbs / 3.0 kg
10 x 12Single CurveSwimmers6.9 lbs / 3.3 kg
10 x 12Single CurveShooters6.5 lbs / 3.0 kg
7.25 x 11.5 Single CurveSAPI (XS)5.0 lbs / 2.2 kg
8.75 x 11.75Single CurveSAPI (S)6.4 lbs / 2.9 kg
9.5 x 12.5Single CurveSAPI (M)7.4 lbs / 3.3 kg
10 x 13.25Single CurveSAPI (L)8.4 lbs / 3.8 kg
11 x 14Single CurveSAPI (XL)9.3 lbs / 4.2 kg
STANDARDWEAPONPROJECTILEGRVEL FT/SVEL M/S(+/- ft/s)
NIJ 0101.06Rifle7.62 mm FMJ, Steel Jacketed Bullets (M80)1472780847(+/- 30)
NIJ 0101.06Rifle.30 Caliber Armor Piercing (AP) Bullets (M2 AP)1662880878(+/- 30)
