Guardian 3s11m

$559.00$859.00

Level III Ultra Lightweight

SKU: 3s11m

Request Quote
Register to Buy Online
Categories: ,

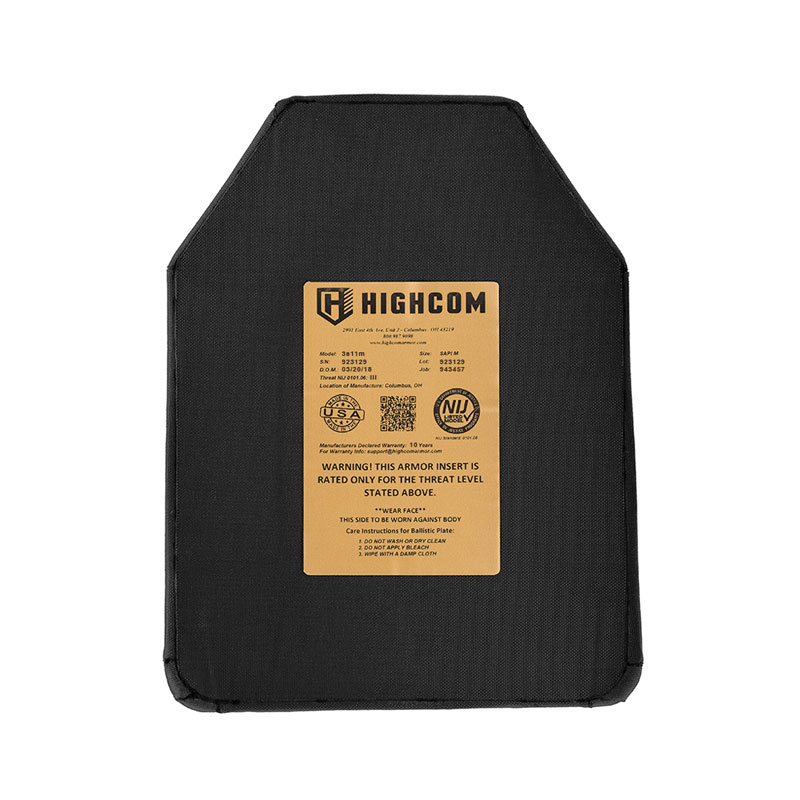

The Guardian 3s11m™ is a lightweight level III stand alone multi curve rifle armor plate. Engineered from UHMWPE the 3s11m is NIJ 0101.06 compliant and can be found on the NIJ’s CPL (Compliant Product List). The 3s11m has positive buoyancy.

  • Protection: Level III stand alone high velocity rifles
  • NIJ Standard 0101.06 CERTIFIED: This product is NIJ 0101.06 compliant “Certified” by NIJ and can be found listed on the NIJ’s CPL
  • RST: Rifle Special Threats Validated
  • Material: Super Lightweight UHMWPE based hard armor plate
  • Positive Buoyancy: Product floats in water
  • Exterior Cover: 1000D CORDURA®, Textured Nylon

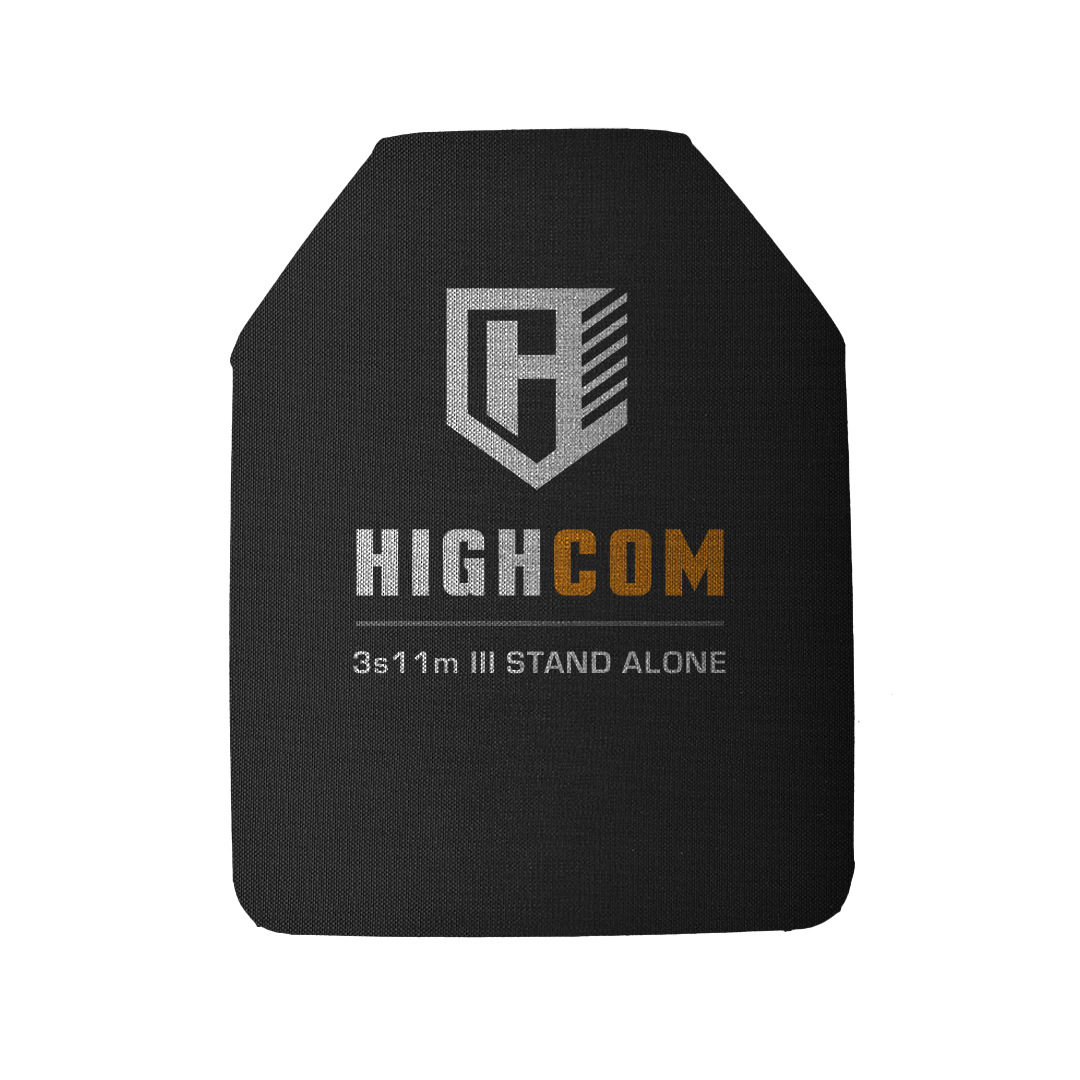

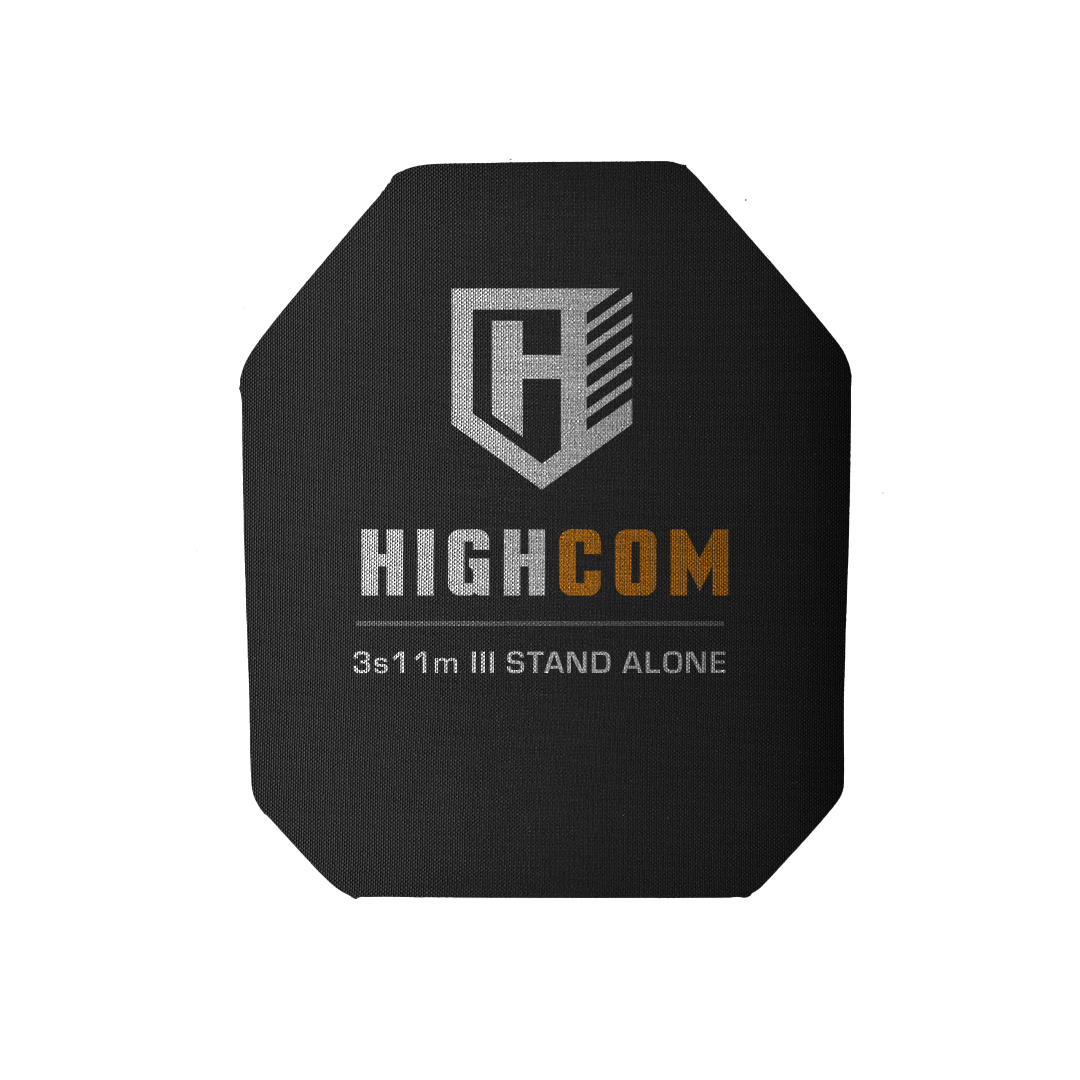

  • Cut: Available in Shooters and SAPI (10” x 12” shooters cut is considered nominal 9.5” x 11.5” dimensions)
  • Thinness: 1.25”
  • Warranty: 10 years on all ballistic material excluding exterior cover and 1 year on exterior cover material and workmanship
Size Curvature Cut Weight
10 x 12Multi CurveShooters2.9 lbs / 1.3 kg
7.25 x 11.5 Multi CurveSAPI (XS)2.2 lbs / 1.0 kg
8.75 x 11.75Multi CurveSAPI (S)2.8 lbs / 1.3 kg
9.5 x 12.5Multi CurveSAPI (M)3.3 lbs / 1.5 kg
10 x 13.25Multi CurveSAPI (L)3.8 lbs / 1.7 kg
11 x 14Multi CurveSAPI (XL)4.1 lbs / 1.9 kg
StandardWEAPON Projectile GRVEL FT/S VEL M/S(+/- FT/S)
NIJ 0101.06Rifle 7.62 mm FMJ, Steel Jacketed Bullets (M80)1432780 847(+/- 30)
SpecialRifle 7.62 x 39mm Mild Steel Core 1232400 731(+/- 50)
SpecialRifle 5.56 x 45mm M193 553250 991(+/- 50)
