Guardian 3s9

$309.00$569.00

Level III++ Stand Alone

SKU: 3s9

Request Quote
Register to Buy Online
Categories: ,

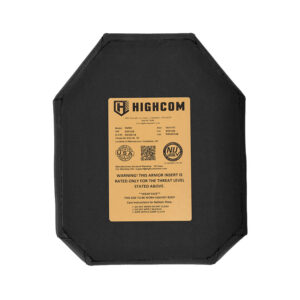

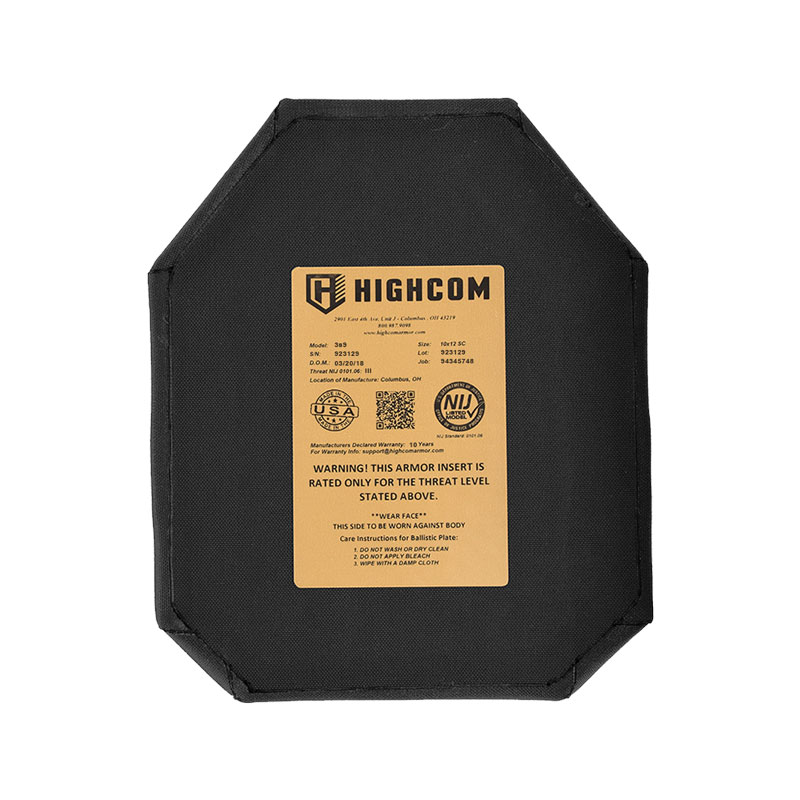

The Guardian 3s9™ is a high performing, lightweight level III++ stand alone rifle plate. Engineered from ceramic and UHMWPE the 3s9 is NIJ 0101.06 compliant and can be found on the NIJ’s CPL (Compliant Product List). The 3s9 is a popular choice for law enforcement agencies across the country.

  • Protection: Level III++ stand alone high velocity rifle
  • NIJ Standard 0101.06 CERTIFIED: This product is NIJ 0101.06 compliant “Certified” by NIJ and can be found listed on the NIJ’s CPL
  • DEA: Hard Armor Protocol Ballistics
  • RST: Rifle Special Threats Validated
  • Material: Ceramic + UHMWPE
  • Thinness: 1.15”

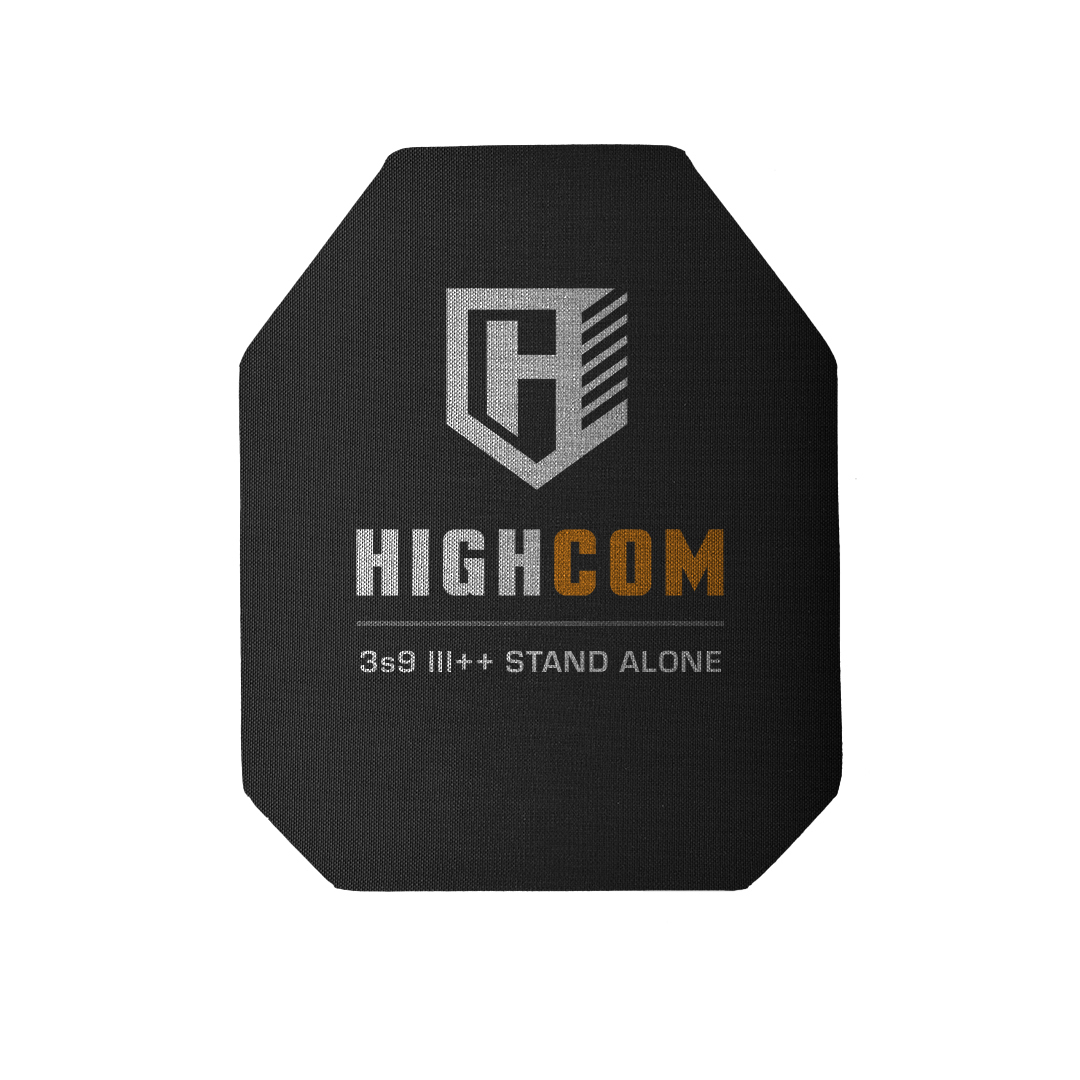

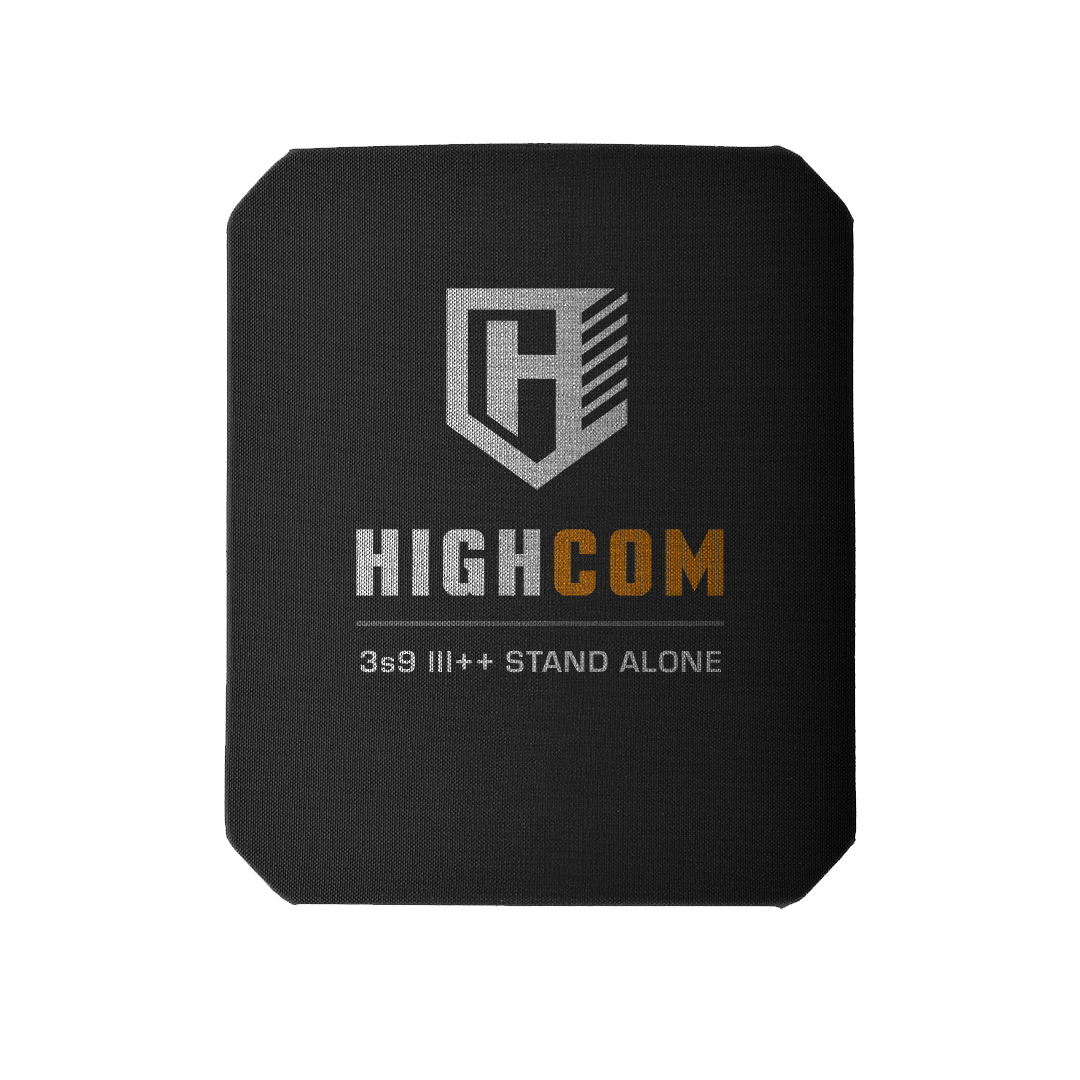

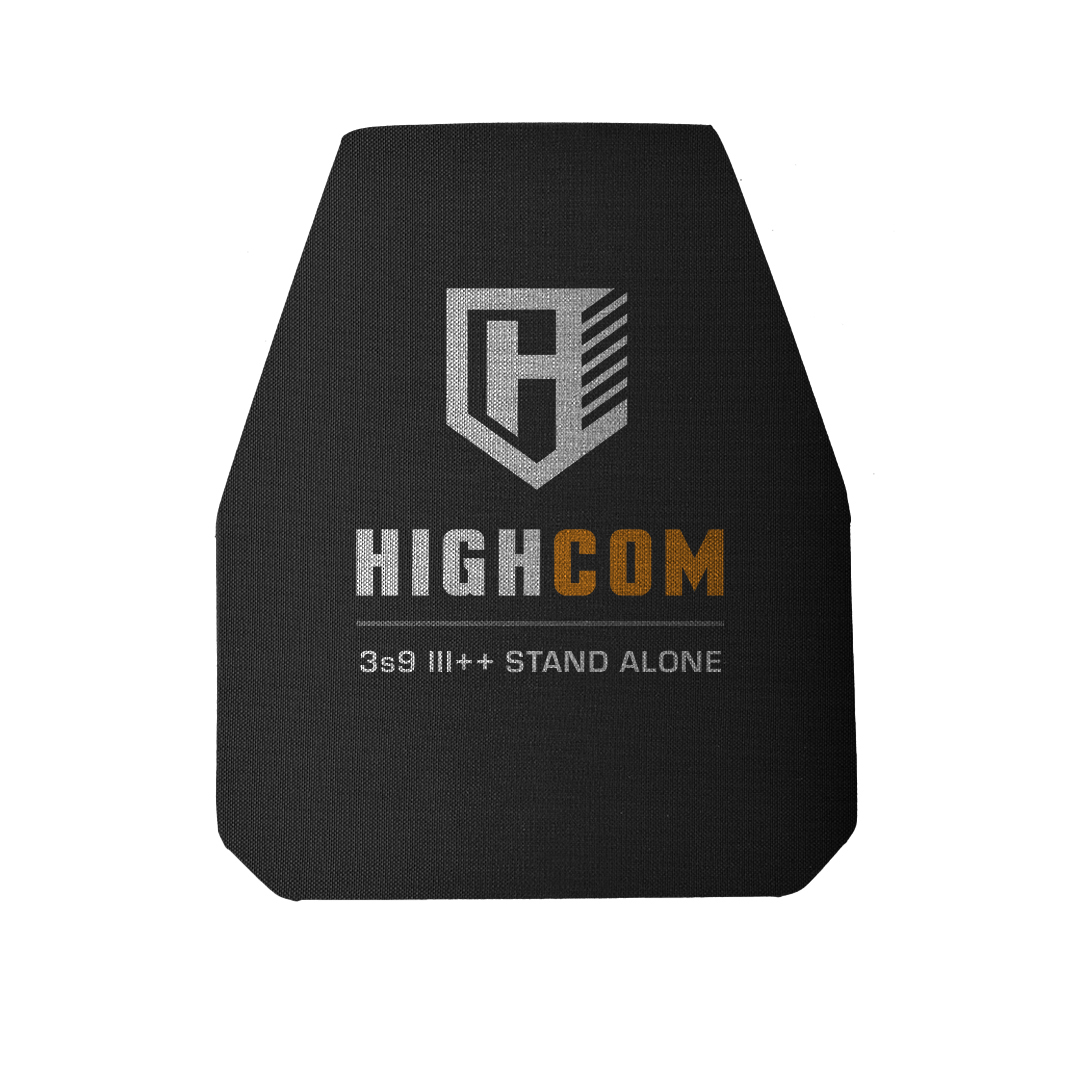

  • Cut: Available in Shooters, Swimmers, and Full (10” x 12” shooters cut is considered nominal 9.5” x 11.5” dimensions)
  • Exterior Cover: 1000D CORDURA®, Textured Nylon
  • Warranty: 10 years on all ballistic material excluding exterior cover and 1 year on exterior cover material and workmanship
Size Shape CutWeight
5 x 7 Single Curve Full Cut 1.9 lbs / 0.9 kg
5 x 8 Single Curve Full Cut 2.2 lbs / 1.0 kg
6 x 6 Single Curve Full Cut 1.8 lbs / 0.8 kg
6 x 8 Single Curve Full Cut 2.6 lbs / 1.2 kg
8 x 10 Single Curve Full Cut 4.2 lbs / 1.9 kg
8 x 10 Single Curve Shooters Cut 4.1 lbs / 1.9 kg
10 x 12 Single Curve Full Cut 6.3 lbs / 2.9 kg
10 x 12 Single Curve Shooters Cut 5.3 lbs / 2.4 kg
STANDARDWEAPON PROJECTILEGRVEL FT/SVEL M/S(+/- ft/s)
NIJ 0101.06Rifle7.62 mm FMJ, Steel Jacketed Bullets (M80)1472780847(+/- 30)
DEA 2017Rifle.223 Remington Tactical Bonded Soft Point622600792(+/- 50)
DEA 2017Rifle5.56 x 45mm M855 (Green Tip)623100945(+/- 50)
DEA 2017Rifle7.62 x 39mm Mild Steel Core1232400731(+/- 50)
DEA 2017Rifle7.62 mm FMJ, Steel Jacketed Bullets (M80)1472750838(+/- 50)
DEA 2017Rifle.308 Winchester PSPB Core-Lokt Ultra Bonded1502600792(+/- 50)
SpecialRifle.223 SCS Brush Hog553150960(+/- 50)
SpecialRifle5.56 x 45mm M193 FMJ553250991(+/- 50 fps)
SpecialRifle7.62 x 39mm (BZ API)1222380725(+/- 50)
SpecialRifle7.62 x 51mm (M61 AP)150.52750838(+/- 50)
SpecialRifle7.62 x 54R (LPS)1482880878(+/- 50)
SpecialRifle7.62 x 54R-b-32 API1552800853(+/- 50)
SpecialRifle7.62 x 63mm-JSP1502780847(+/- 50)
SpecialRifleRifle AK-47, M, SKS 7.62 x 39mm Ball1232380725(+/- 50)
SpecialRifle12-Gauge, 2 ¾ -in Mag., 1oz. Slug 437.51145349(+/- 50)
SpecialRifle5.56 x 45mm M855A1623100945(+/- 50)

Guardian 3s9 Product Spec

External file Download

Image of HighCom Armor Guardian Plates Overview PDF catalog with hard armor plate and company logo

Guardian Hard Armor Plates Overview

External file Download

HighCom Armor Guardian Hard Armor Threat Chart Cover Page PDF

Guardian Hard Armor Threat Chart

External file Download
