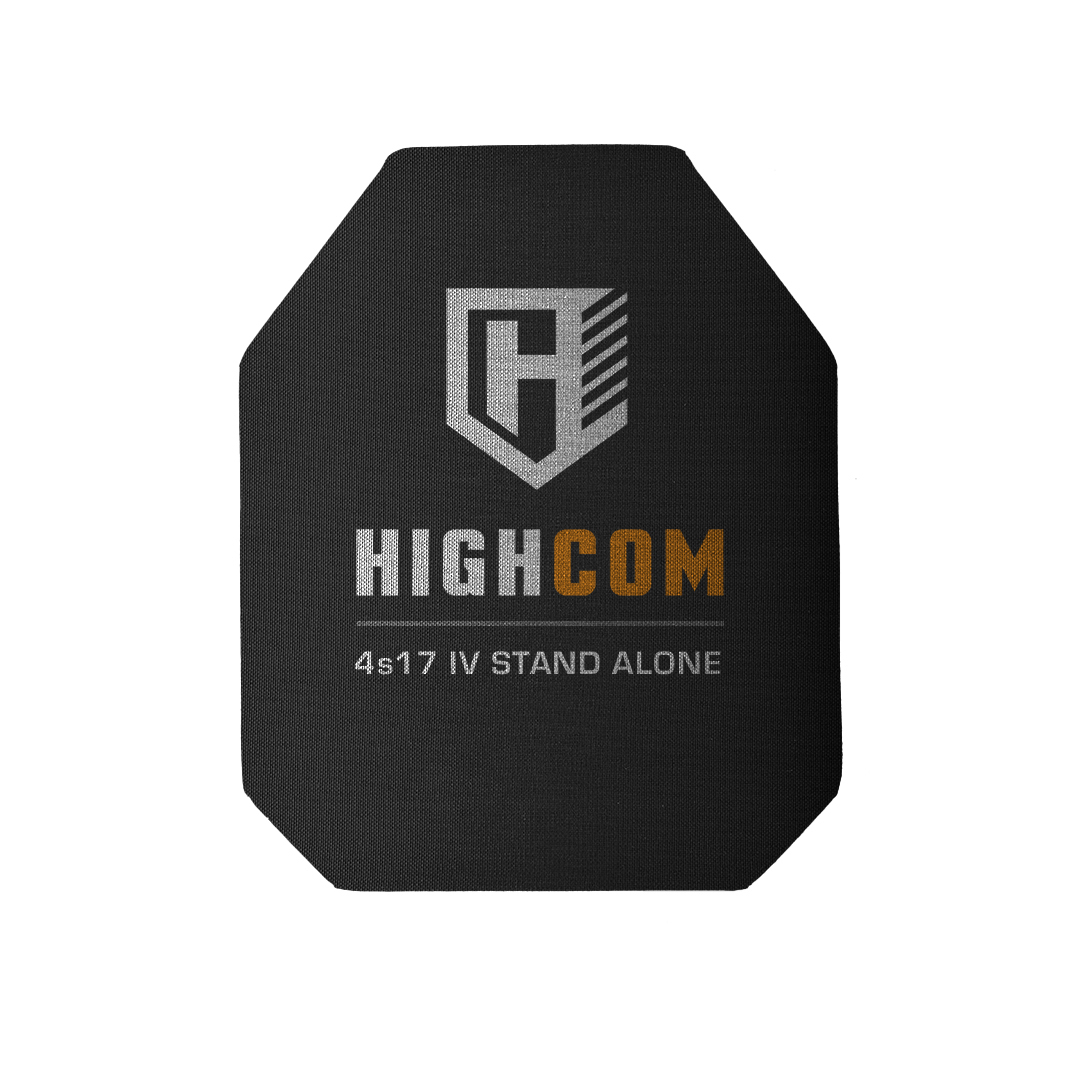

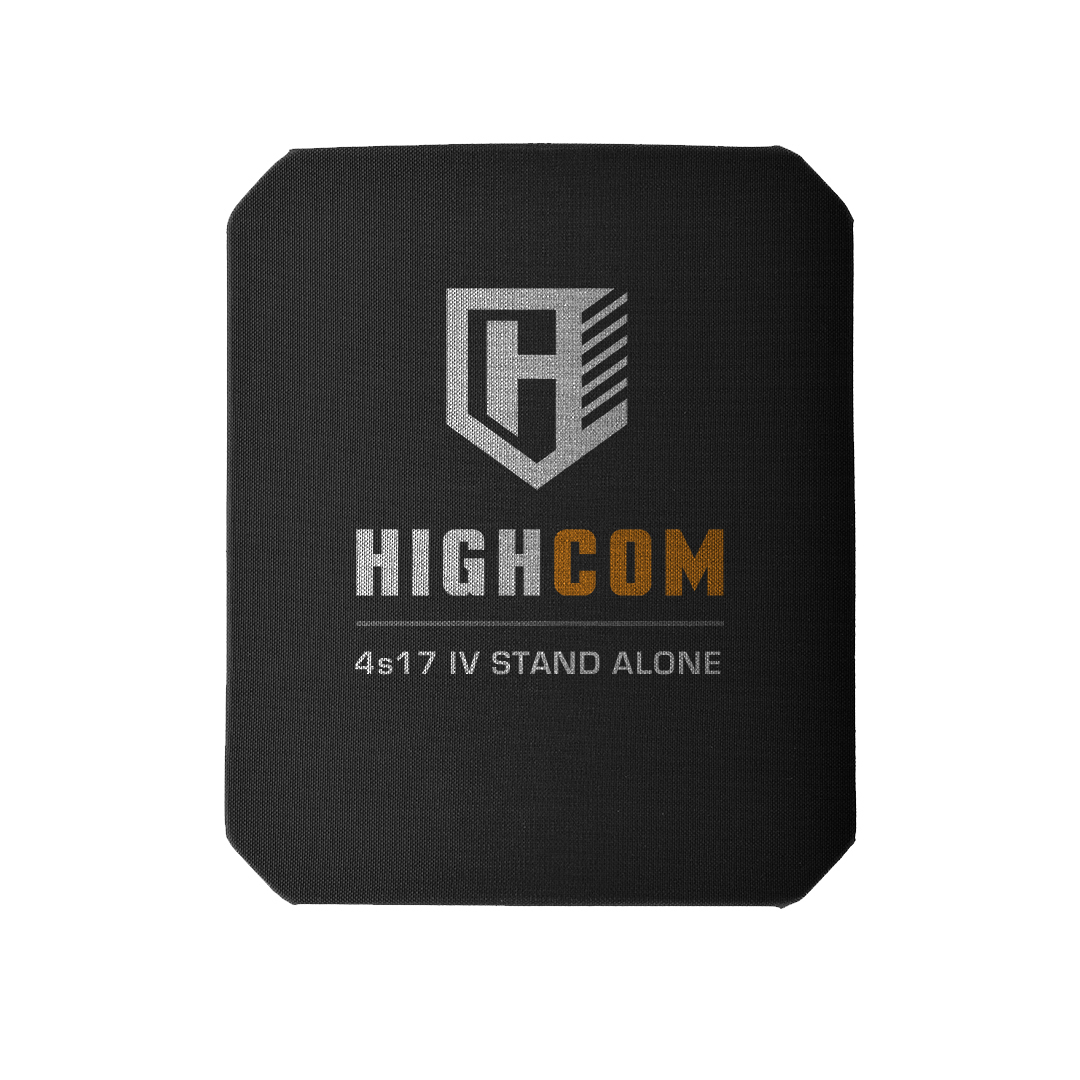

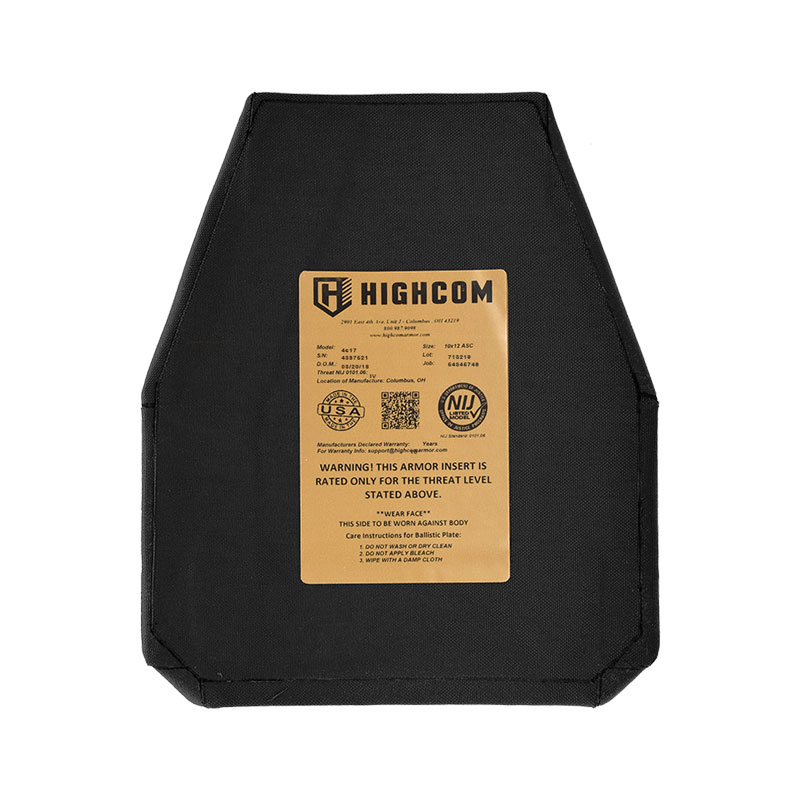

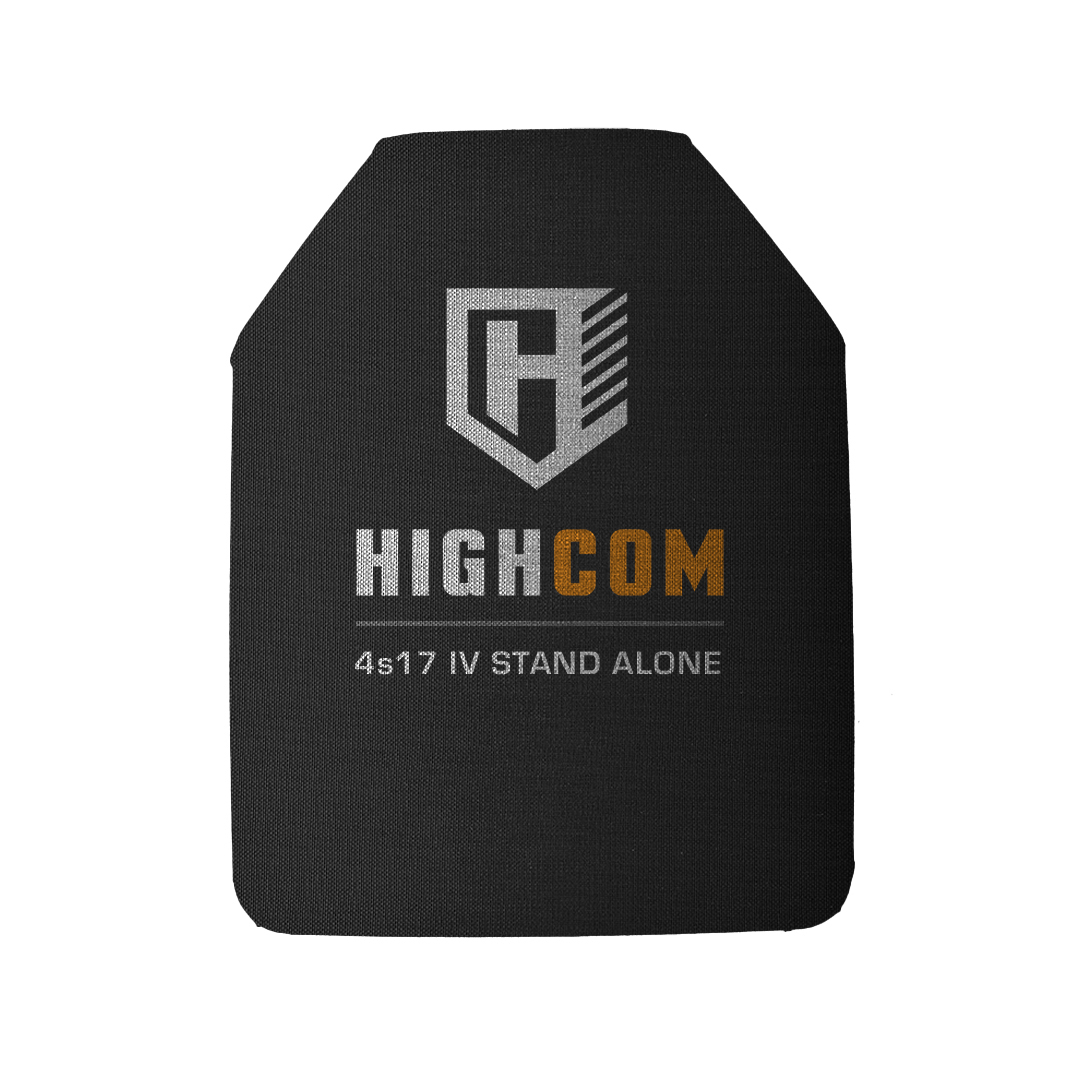

Guardian 4s17

$169.00$229.00

Level IV Stand Alone

SKU: 4s17

Request Quote
Register to Buy Online
Categories: ,

The Guardian 4s17™ is one of our top selling rifle armor solutions. The 4s17 is a level IV stand alone plate that provides armor-piercing protection at an affordable cost. Engineered with a ceramic strike face, the 4s17 is DEA compliant and is NIJ 0101.06 compliant “Certified” by NIJ and can be found listed on the NIJ’s CPL (Compliant Product List).

  • Protection: Level IV Stand Alone Armor Piercing
  • NIJ Standard 0101.06 CERTIFIED: This product is NIJ 0101.06 compliant “Certified” by NIJ and can be found listed on the NIJ’s CPL
  • DEA: Hard Armor Protocol Compliant
  • RST: Rifle Special Threats Validated
  • Material: Ceramic strike face composite backing
  • Exterior Cover: 1000D CORDURA®, Textured Nylon

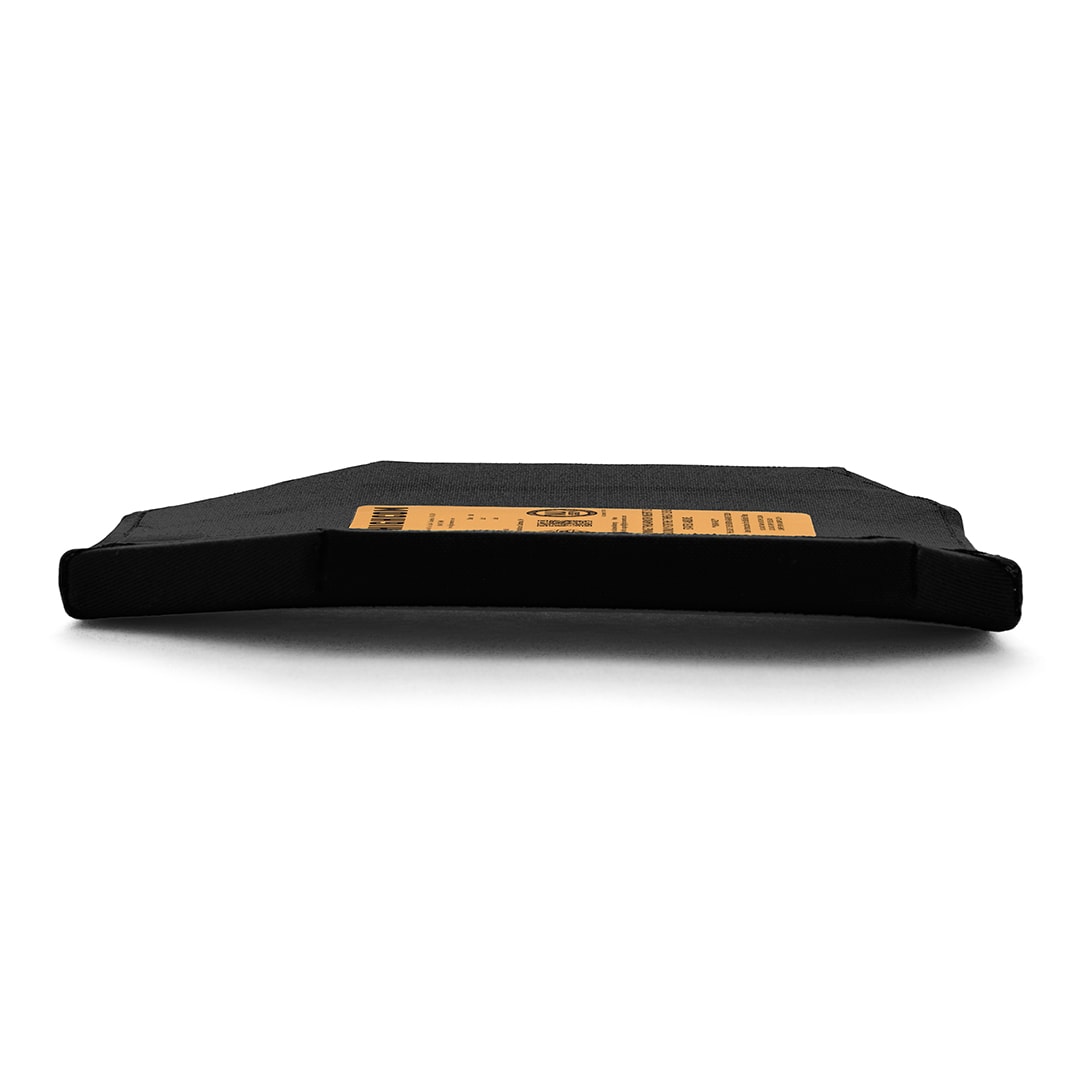

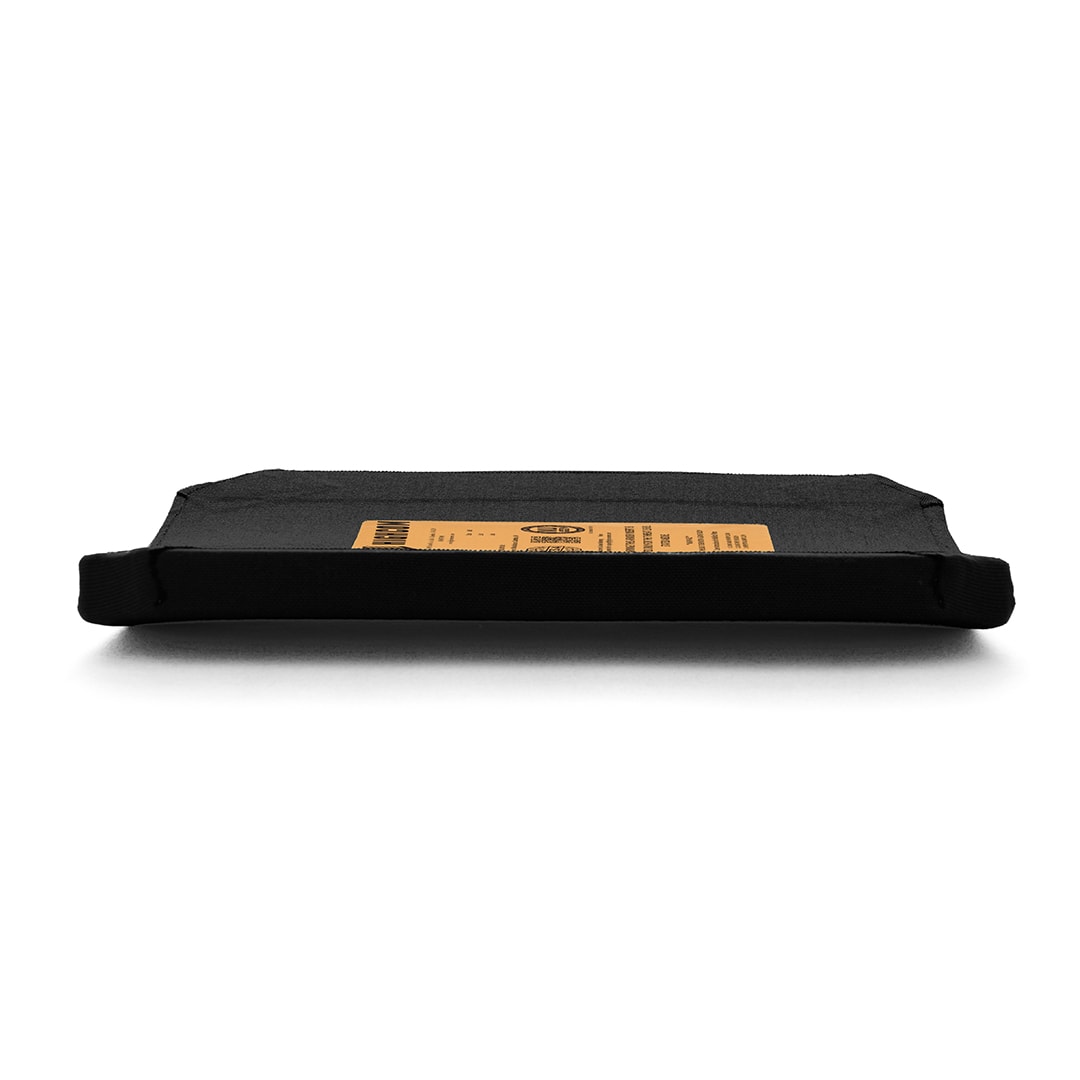

  • Thinness: 0.95”
  • Cut: Available in Shooters, Swimmers, and Full (10” x 12” shooters cut is considered nominal 9.5” x 11.5” dimensions)
  • Warranty: 10 years on all ballistic material excluding exterior cover and 1 year on exterior cover material and workmanship
Size Shape Cut Weight
5 x 7Single CurveFull Cut2.6 lbs / 1.2 kg
5 x 8 Single CurveFull Cut2.9 lbs / 1.3 kg
6 x 6 Single CurveFull Cut2.5 lbs / 1.1 kg
6 x 8 Single CurveFull Cut3.4 lbs / 1.6 kg
8 x 10 Single CurveFull Cut5.7 lbs / 2.6 kg
8 x 10 Single CurveShooters Cut5.6 lbs / 2.5 kg
10 x 12 Single CurveFull Cut8.5 lbs / 3.9 kg
10 x 12 Single CurveShooters Cut7.2 lbs / 3.3 kg
10 x 12 Single CurveSwimmers Cut 7.7 lbs / 3.5 kg
StandardWeaponProjectileGRVEL FT/SVEL M/S(+/- ft/s)
NIJ 0101.06Rifle.30 Caliber Armor Piercing (AP) Bullets (M2 AP)1662880878(+/- 30)
DEA 2017Rifle.223 Remington Tactical Bonded Soft Point622600792(+/- 50)
DEA 2017Rifle5.56 x 45mm M855 (Green Tip)623100945(+/- 50)
DEA 2017Rifle7.62 x 39mm Mild Steel Core1232400731(+/- 50)
DEA 2017Rifle7.62 mm FMJ, Steel Jacketed Bullets (M80)1472750838(+/- 50)
DEA 2017Rifle.308 Winchester PSPB Core-Lokt Ultra Bonded1502600792(+/- 50)
SpecialRifle.223 SCS Brush Hog553150960(+/- 50)
SpecialRifle5.56 x 45mm M193 FMJ553250991(+/- 50)
SpecialRifle7.62 x 39mm (BZ API)1222380725(+/- 50)
SpecialRifle7.62 x 51mm (M61 AP)150.52750838(+/- 50)
SpecialRifle7.62 x 54R (LPS)1482880878(+/- 50)
SpecialRifle7.62 x 54R-B-32 API1552800853(+/- 50)
SpecialRifle7.62 x 63mm-JSP1502780847(+/- 50)
SpecialRifleRifle AK-47, M, SKS 7.62 x 39mm Ball1232380725(+/- 50)
SpecialRifle12-gauge, 2 ¾ -in mag., 1oz. Slug 437.51145349(+/- 50)
Special Rifle5.56 x 45mm M855A1623100945(+/- 50)
