Guardian AR500

$79.00$249.00

Level III+ Stand Alone Steel Plate

SKU: AR500

Request Quote
Register to Buy Online
Categories: ,

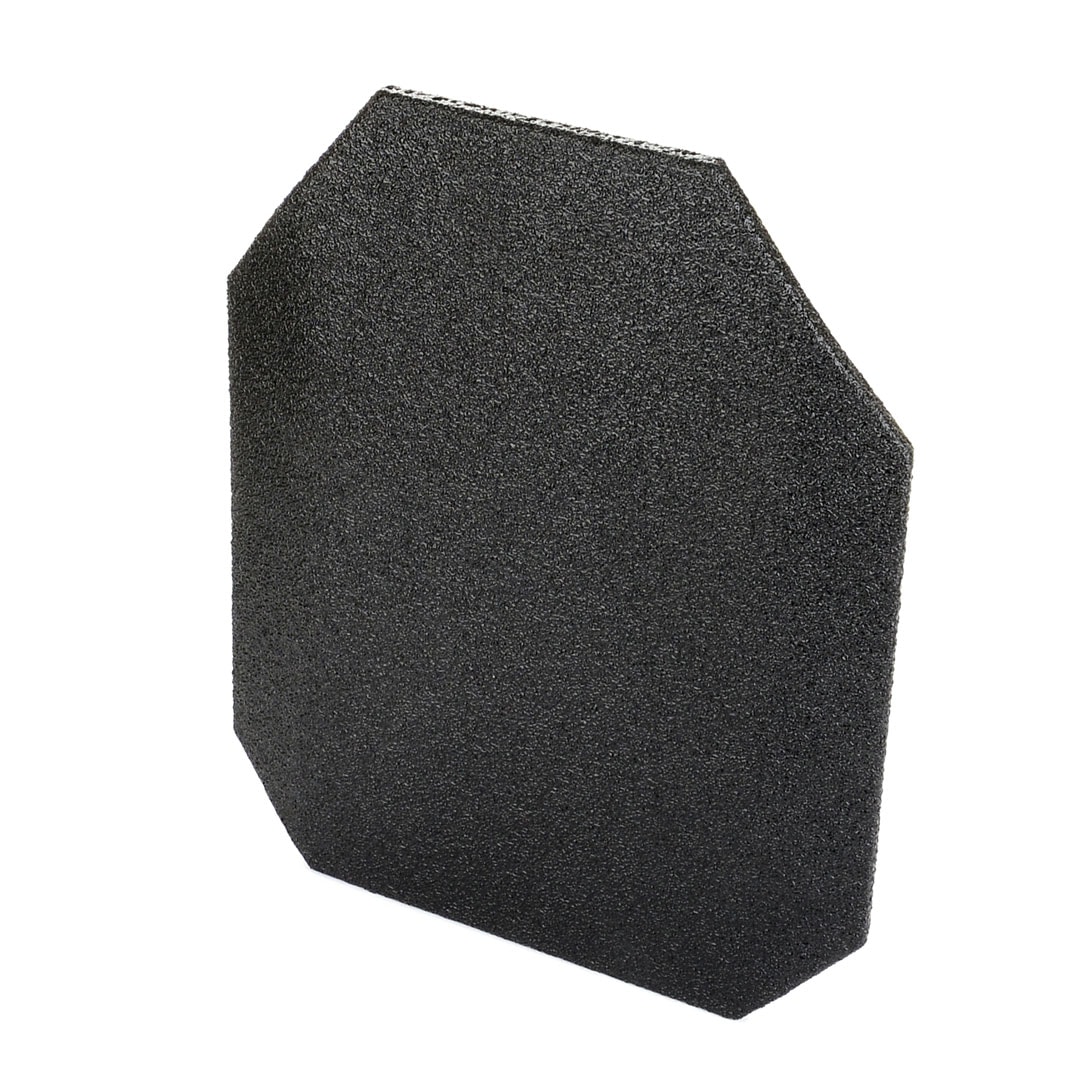

The Guardian AR500™ stand alone steel plate providing level III rifle protection. The AR500 is engineered from High Hardness Armor steel and is NIJ 0101.06 compliant and can be found on the NIJ’s CPL (Compliant Product List). The AR500 is covered in a polyurea ballistic fragment anti spall and blast coating Rhino Extreme™ 11-50.

  • Protection: Level III+ stand alone high velocity rifle rounds

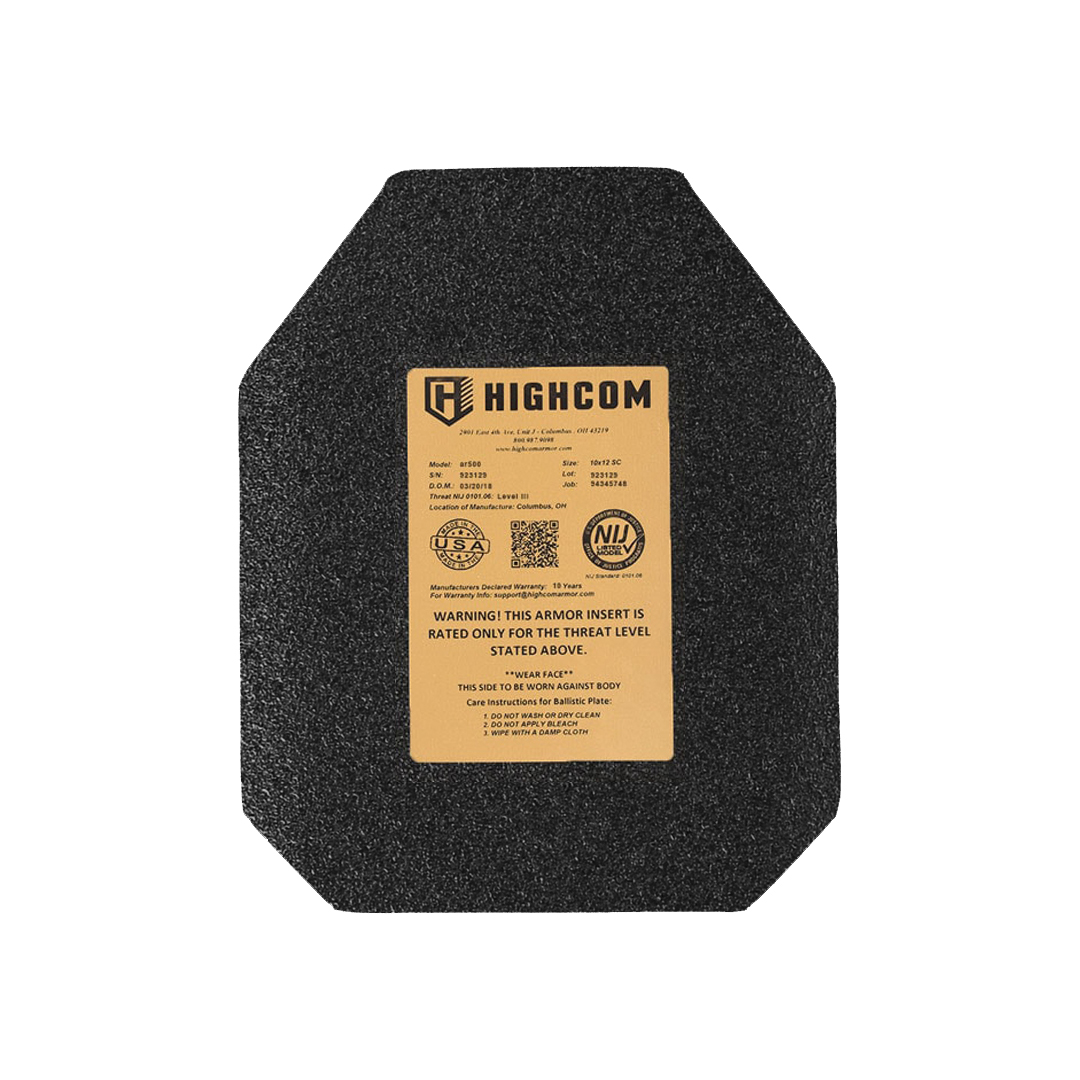

  • NIJ Standard 0101.06 CERTIFIED: This product is NIJ 0101.06 compliant “Certified” by NIJ and can be found listed on the NIJ’s CPL
  • DEA: Hard Armor Protocol Compliant
  • RST: Rifle Special Threats Validated
  • Exterior Cover: Polyurea ballistic fragment anti spall and blast coating Rhino Extreme™ 11-50
  • Material: H-H Steel
  • Thinness: 0.35”

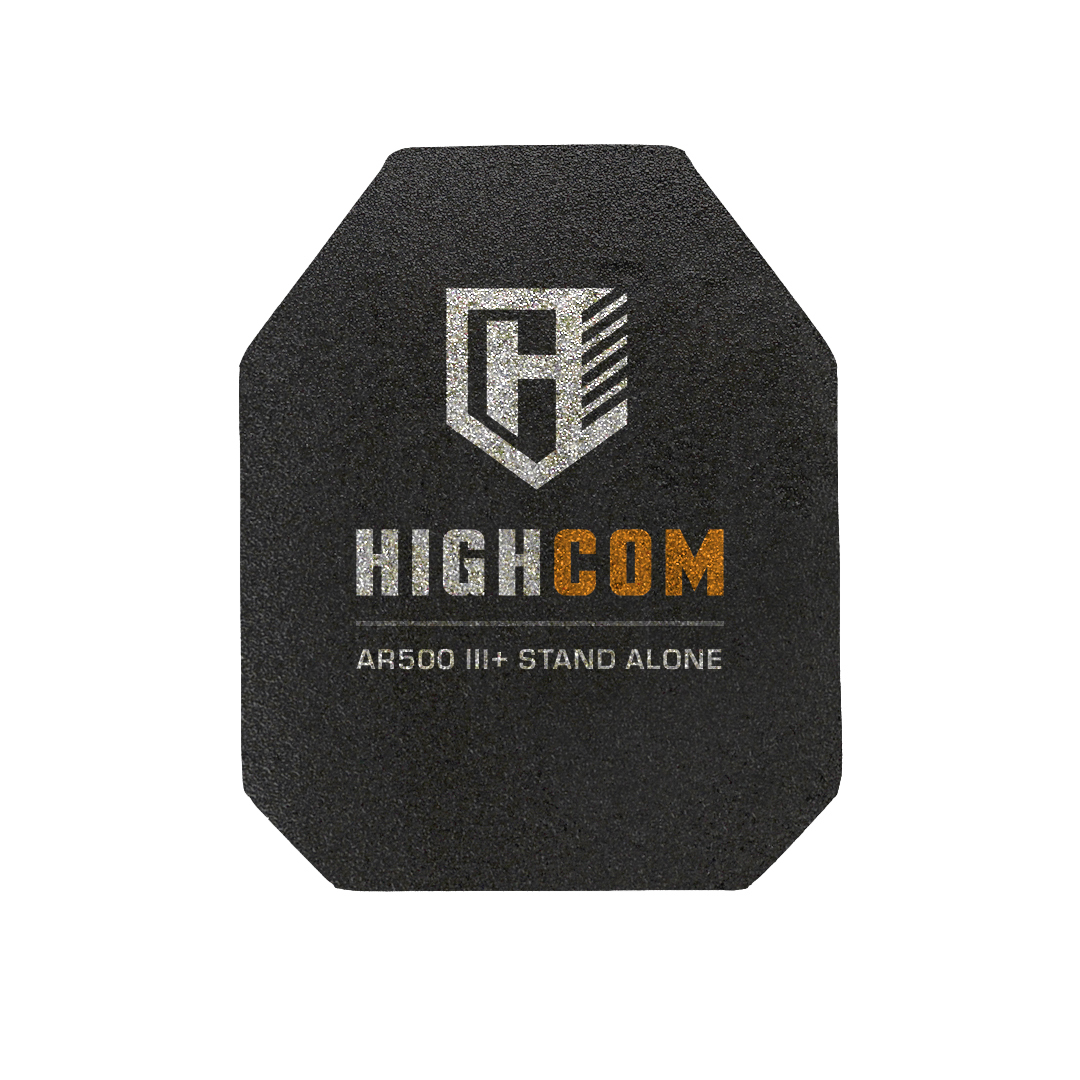

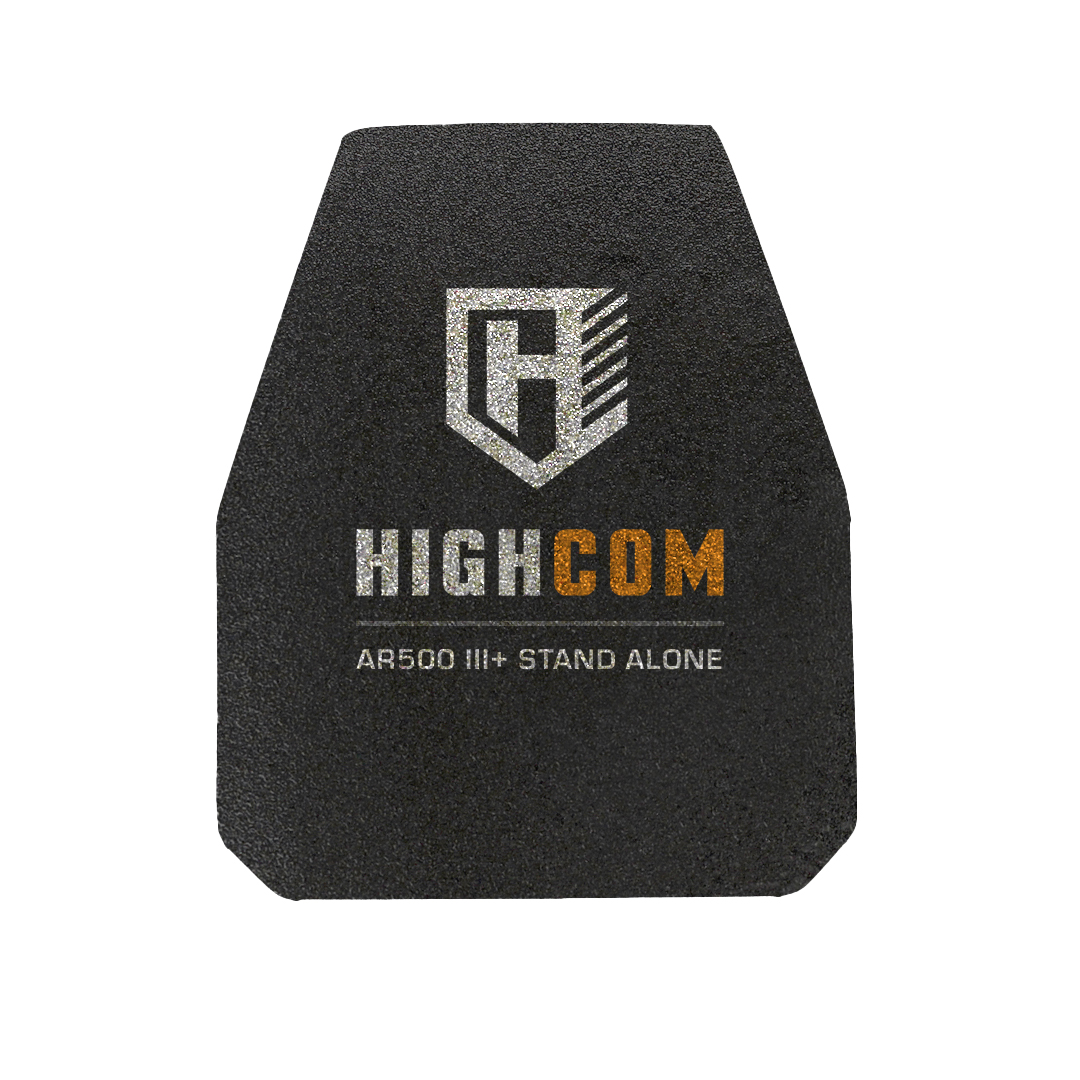

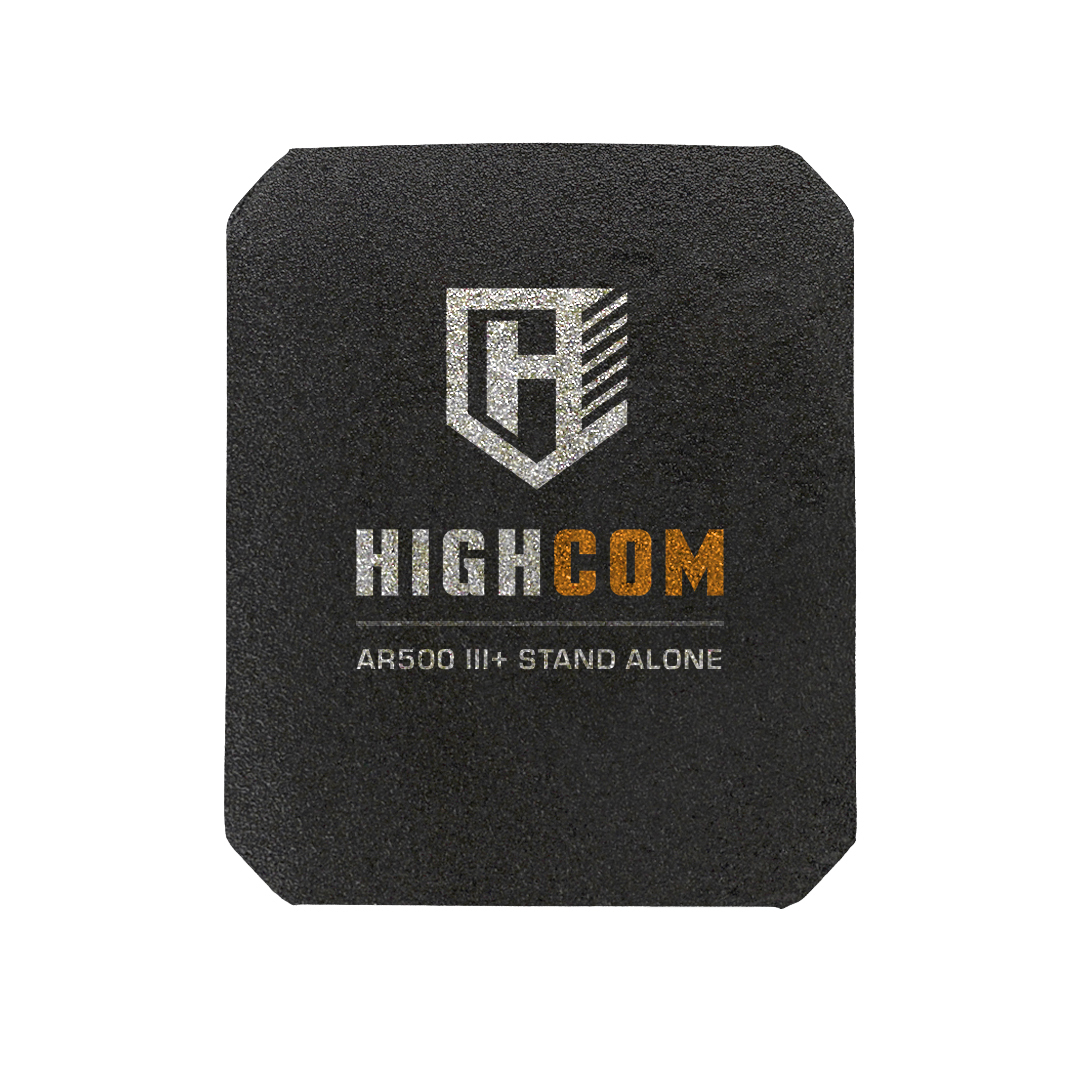

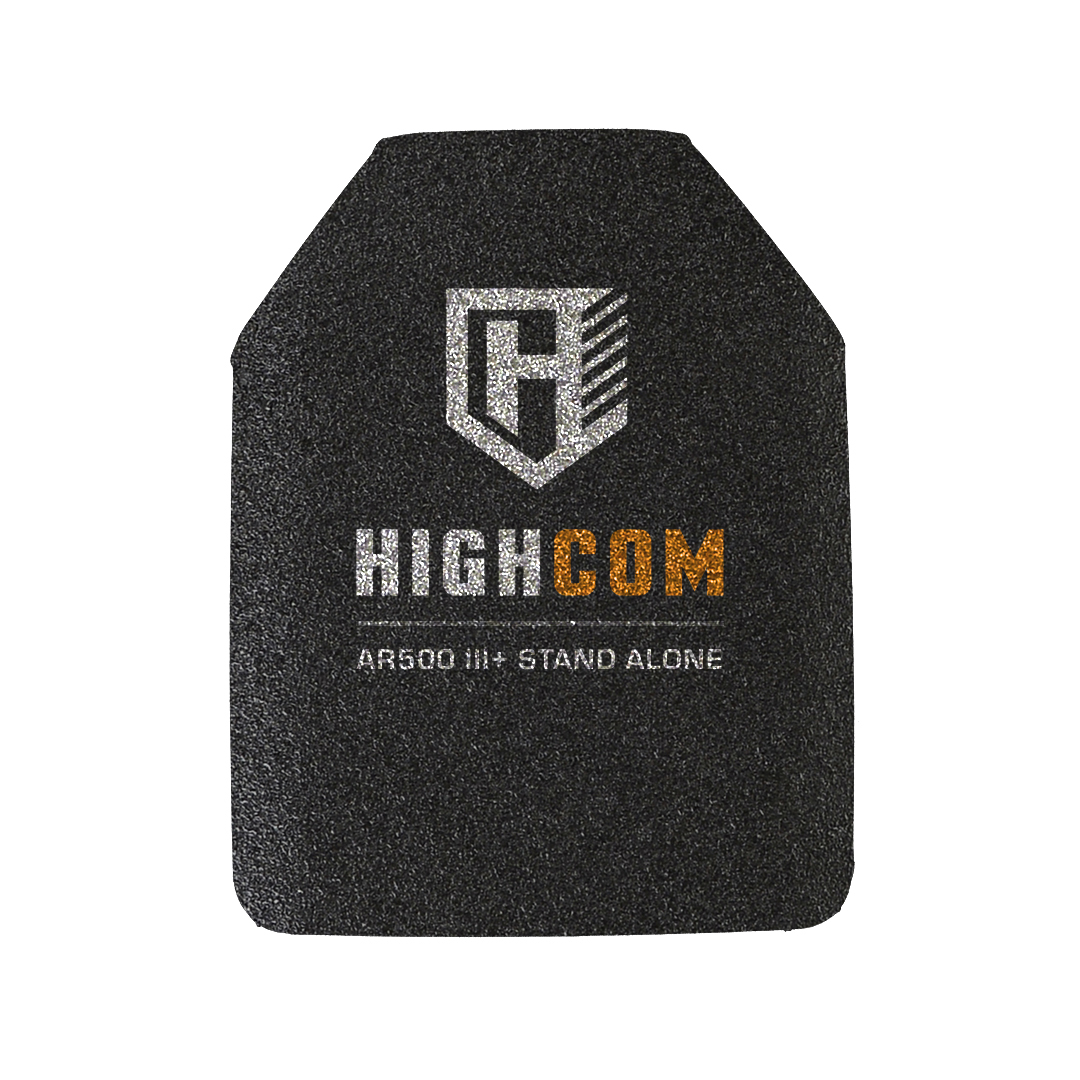

  •  Cut: Available in Shooters, Swimmers, SAPI and Full (10” x 12”shooters cut is considered nominal 9.5” x 11.5” dimensions)
  • Warranty: 10 years on all ballistic material excluding exterior cover and 1 year on exterior cover material and workmanship
Size Curvature Cut 20 Mil Weight40 Mil Weight60 Mil Weight80 Mil Weight
5 x 7Single CurveFull2.7 lbs2.7 lbs2.8 lbs2.9 lbs
5 x 8Single CurveFull3.1 lbs3.2 lbs3.2 lbs3.3 lbs
6 x 6Single CurveFull2.6 lbs2.6 lbs2.7 lbs2.8 lbs
6 x 8Single CurveFull3.6 lbs3.7 lbs3.8 lbs3.9 lbs
8 x 10Single CurveFull6.0 lbs6.1 lbs6.3 lbs6.5 lbs
8 x 10Single CurveShooters5.8 lbs6.0 lbs6.1 lbs6.3 lbs
10 x 12Single CurveFull8.9 lbs9.1 lbs9.3 lbs9.55 lbs
10 x 12Single CurveShooters7.5 lbs7.7 lbs7.9 lbs8.1 lbs
10 x 12Single CurveSwimmers8.0 lbs8.2 lbs8.4 lbs8.6 lbs
7.25 x 11.5 Single CurveSAPI (XS)6.2 lbs6.4 lbs6.6 lbs6.8 lbs
8.75 x 11.75Single CurveSAPI (S)7.7 lbs8.0 lbs8.2 lbs8.45 lbs
9.5 x 12.5Single CurveSAPI (M)9.0 lbs9.2 lbs9.4 lbs9.6 lbs
10 x 13.25Single CurveSAPI (L)10.3 lbs10.6 lbs10.9 lbs11.2 lbs
11 x 14Single CurveSAPI (XL)11.8 lbs12.1 lbs12.4 lbs12.7 lbs
StandardWeaponProjectileGRVEL FT/SVEL M/S(+/- ft/s)
NIJ 0101.06Rifle7.62 mm FMJ, Steel Jacketed Bullets (M80)1472780847(+/- 30)
DEA 2017Rifle.223 Remington Tactical Bonded Soft Point622600792(+/- 50 fps)
DEA 2017Rifle5.56 x 45mm M855 (Green Tip)623100945(+/- 50 fps)
DEA 2017Rifle7.62 x 39mm Mild Steel Core1232400731(+/- 50 fps)
DEA 2017Rifle7.62 mm FMJ, Steel Jacketed Bullets (M80)1472750838(+/- 50 fps)
DEA 2017Rifle.308 Winchester PSPB Core-Lokt Ultra Bonded1502600792(+/- 50 fps)
