Guardian STP

$89.00$229.00

Special Threat Plate | Level IIIA

SKU: STP

Request Quote
Register to Buy Online
Categories: ,

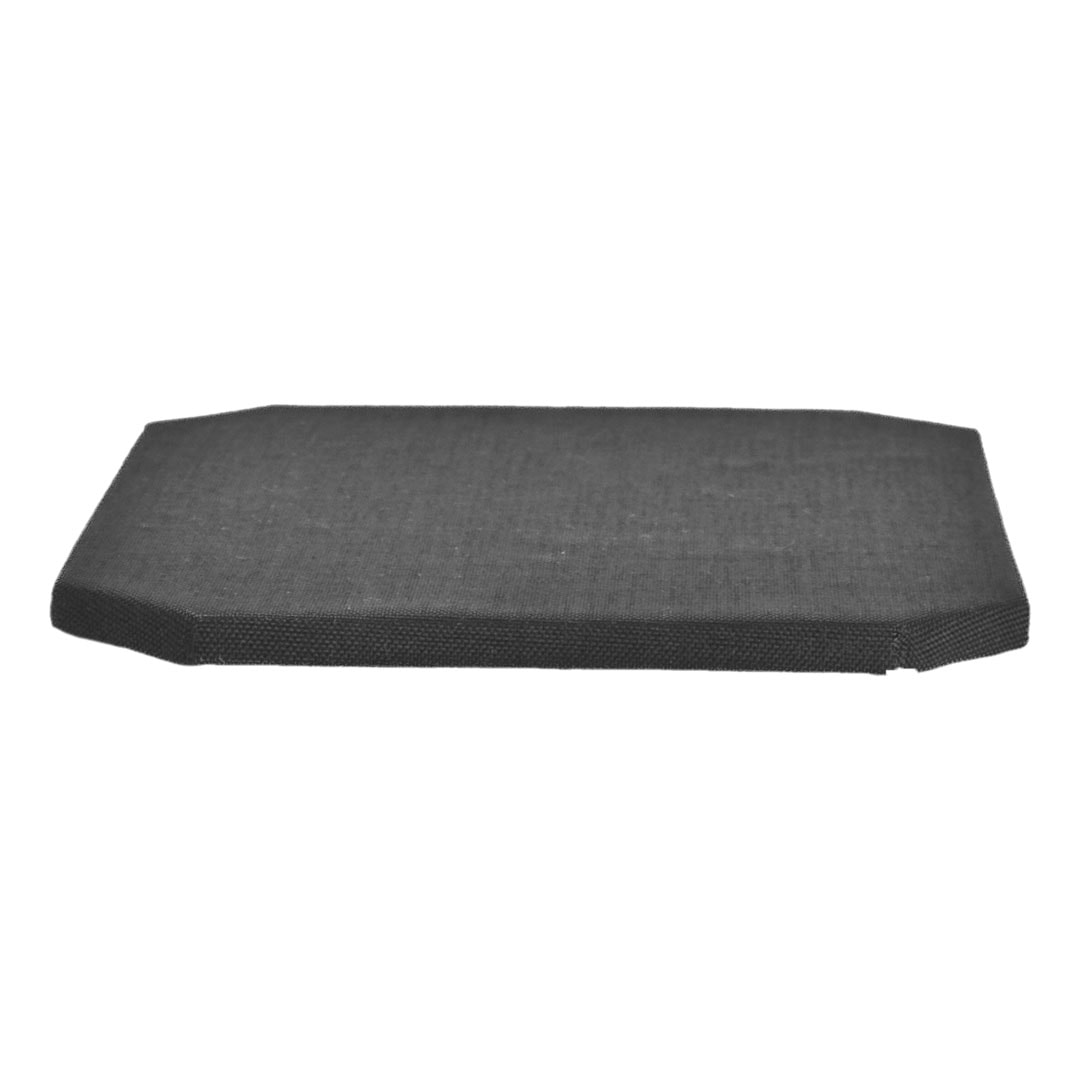

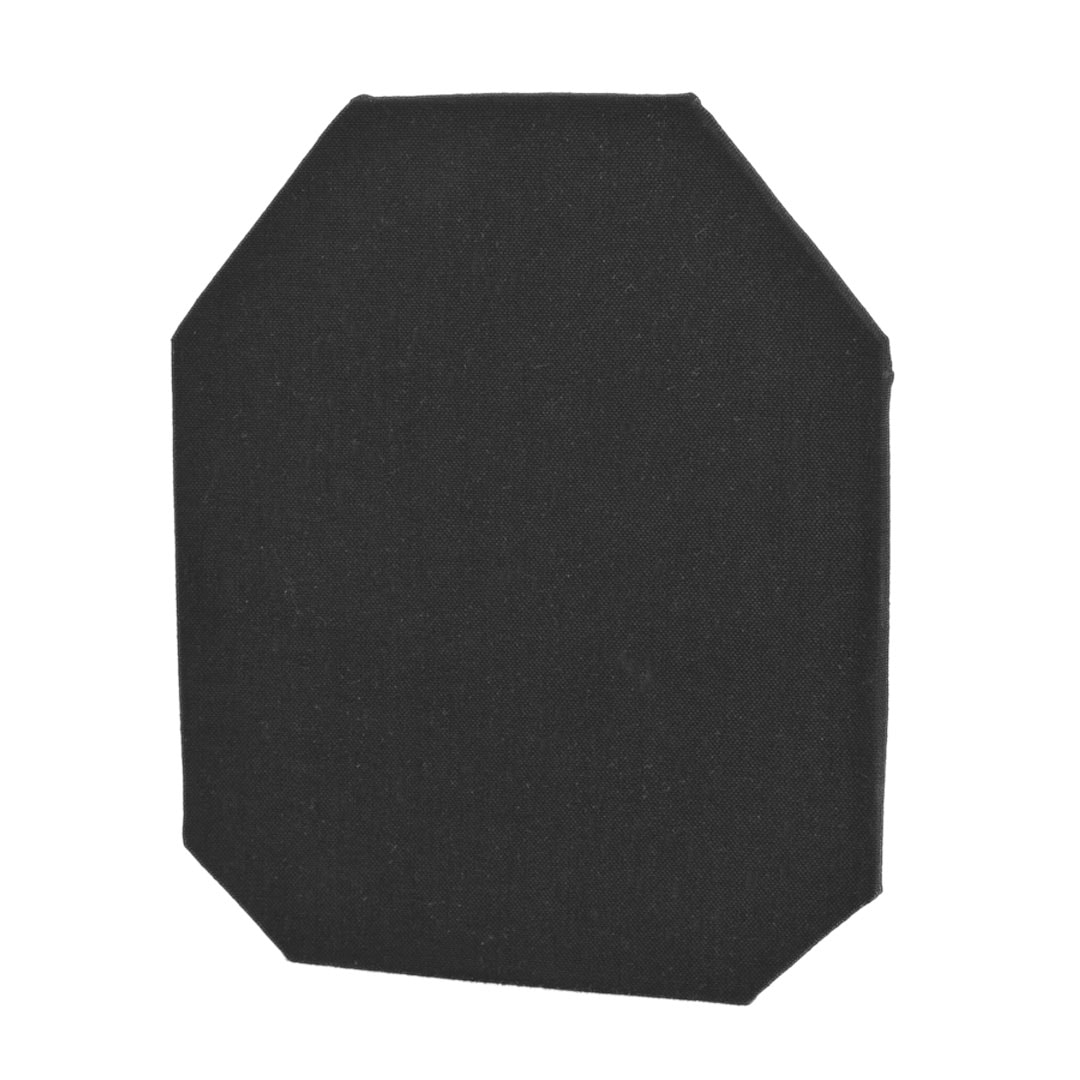

The Guardian STP™ (Special Threat Plate) is a level IIIA stand alone plate designed for protection against handgun rounds and handgun special threats. The STP has been tested to meet or exceed NIJ Standard 0108.01.

  • Protection: Level IIIA High Velocity Handgun Rounds
  • NIJ Standard 0108.01 TESTED: This product has been independently tested by an NVLAP accredited NIJ approved laboratory to meet or exceed ballistic resistance as specified under NIJ Standard 0108.01
  • HST: Handgun Special Threat Validated
  • Material: Super Lightweight UHMWPE
  • Positive Buoyancy: Product floats in water
  • Exterior Cover: Polyurea with Rhino Extreme 1150 Anti Spall Coated System
  • Thinness: 0.25”

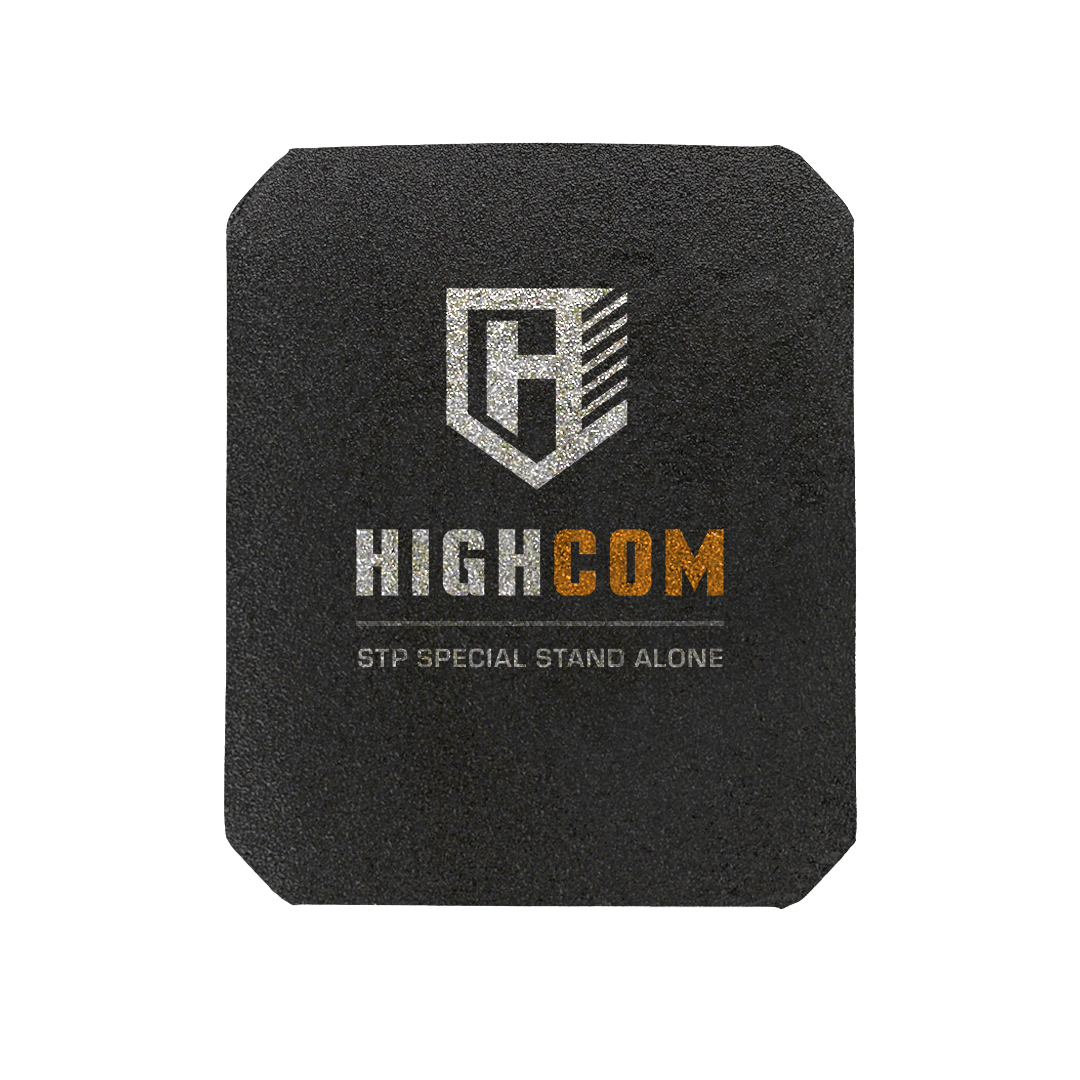

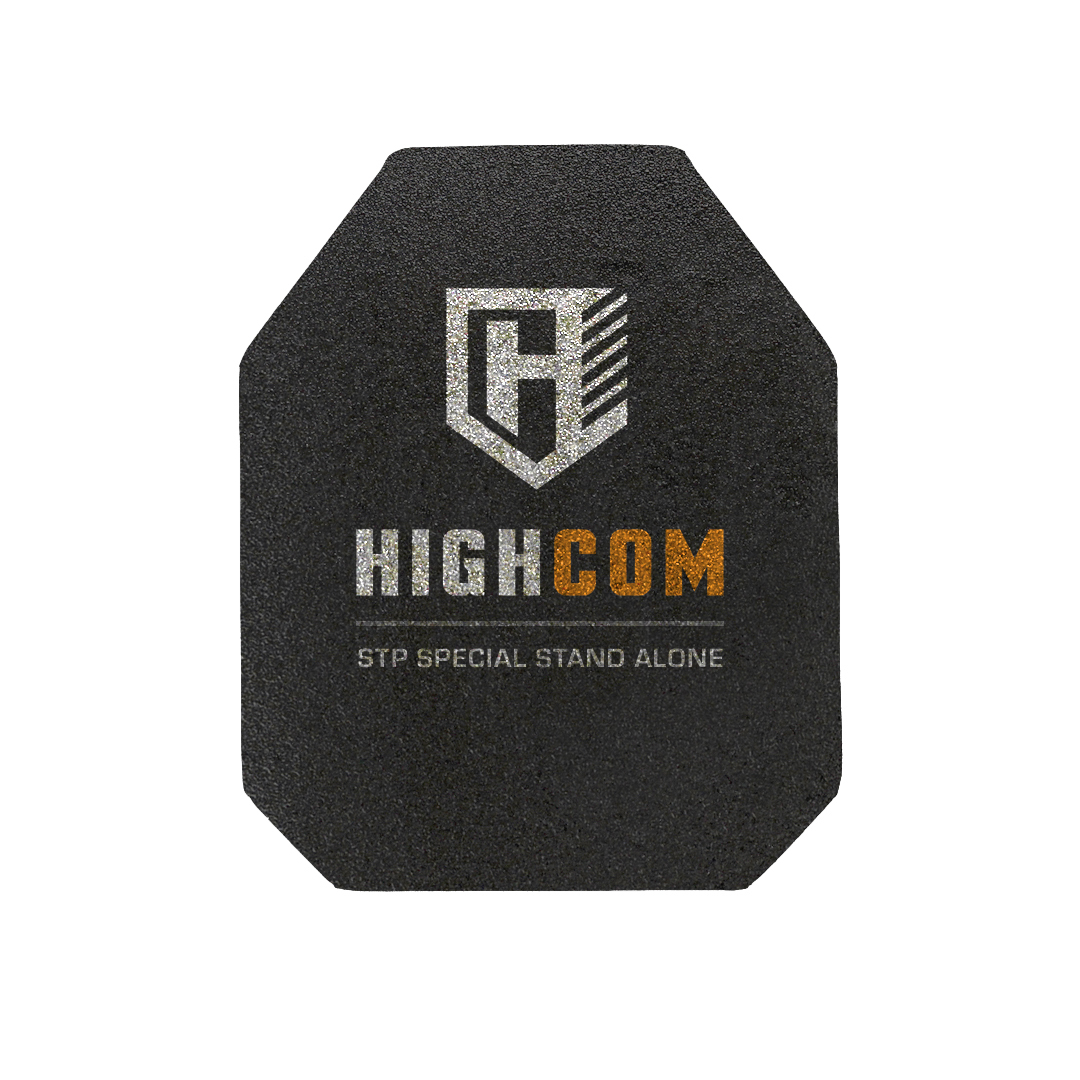

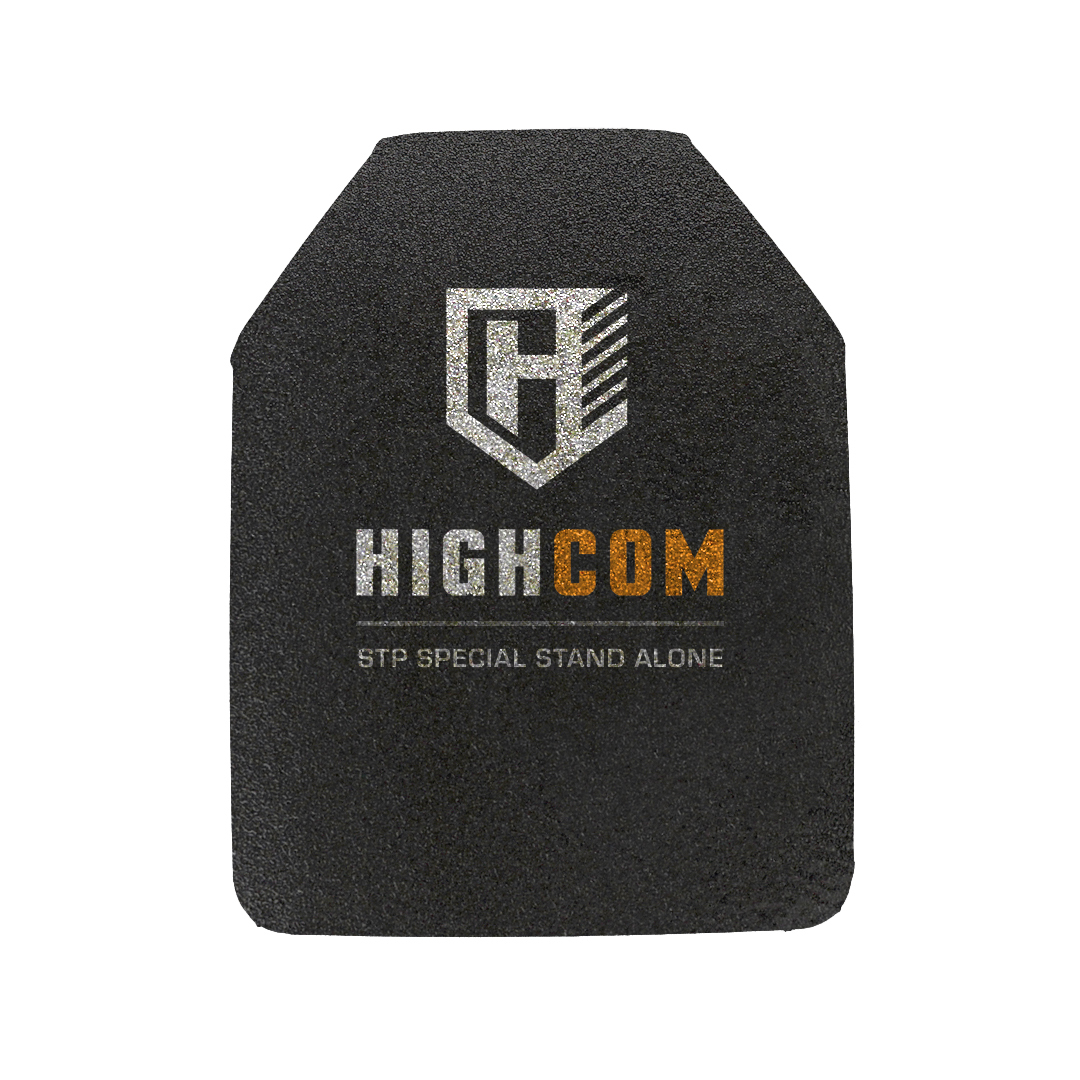

  • Cut: Available in Shooters, Swimmers, SAPI, and Full (10” x 12” shooters cut is considered nominal 9.5” x 11.5” dimensions)
  • Warranty: 5 years on all ballistic material excluding exterior cover and 1 year on exterior cover material and workmanship
SizeCurvatureCutWeight (lbs / kg)
5 x 7Single Curve Full 0.24 / 0.11
5 x 8Single CurveFull0.27 / 0.12
6 x 6Single Curve Full0.22 / 0.10
6 x 8 Single Curve Full0.32 / 0.14
8 x 10Single Curve Full0.52 / 0.24
8 x 10Single Curve Shooters0.51 / 0.23
10 x 12Single Curve Full0.78 / 0.35
10 x 12Single Curve Shooters0.66 / 0.30
10 x 12 Single Curve Swimmers0.69 / 0.31
10 x 12 Multi Curve Shooters0.66 / 0.30
7.25 x 11.5 Multi Curve SAPI (XS)0.55 / 0.25
8.75 x 11.75 Multi Curve SAPI (S)0.68 / 0.31
9.5 x 12.5Multi Curve SAPI (M)0.79 / 0.36
10 x 13.25Multi Curve SAPI (L)0.91 / 0.41
11 x 14Multi Curve SAPI (XL)1.04 / 0.47
STANDARDWEAPONPROJECTILEGRVEL FT/SVEL M/S(+/- ft/s)
NIJ 0108.01Handgun.357 Magnum Jacketed Soft Point (JSP)1581395425(+/- 50)
NIJ 0108.01Handgun9mm Full Metal Jacketed Round Nose (FMJ RN)1241400427(+/- 50)
NIJ 0108.01Handgun.44 Magnum Lead SWC Gas Checked2401400427(+/- 50)
SpecialHandgun9mm Full Metal Jacketed Round Nose (FMJ RN)1241400427(+/- 50)
SpecialHandgun.40 S&W, Speer Gold Dot Hollow Point (GDHP) 165940287(+/- 50)
SpecialHandgun9mm Luger, Speer Gold Dot II1471015309(+/- 50)
SpecialHandgun9mm +P+ (SXT)1271340408(+/- 30)
SpecialHandgun.40 S&W JHP, Speer Gold Dot (GDHP)1801240378(+/- 30)
SpecialHandgun9mm Luger JHP, Speer Gold Dot1471136346(+/- 50)
SpecialHandgun5.7 x 28mm SS195, Lead Free Hollow Point (LFHP)272000610(+/- 30)
SpecialHandgun5.7 x 28mm SS197, Hornady V-Max Blue Tip401790546(+/- 30)
HighCom Armor Guardian STP Hard Armor Plate Product Spec PDF page

Guardian STP Product Spec

External file Download
