STRIKER RCHMC

$2,399.00

Rifle Combat Helmet Level III+ Mid Cut

SKU: RCHMC

Request Quote
Register to Buy Online
Categories: ,

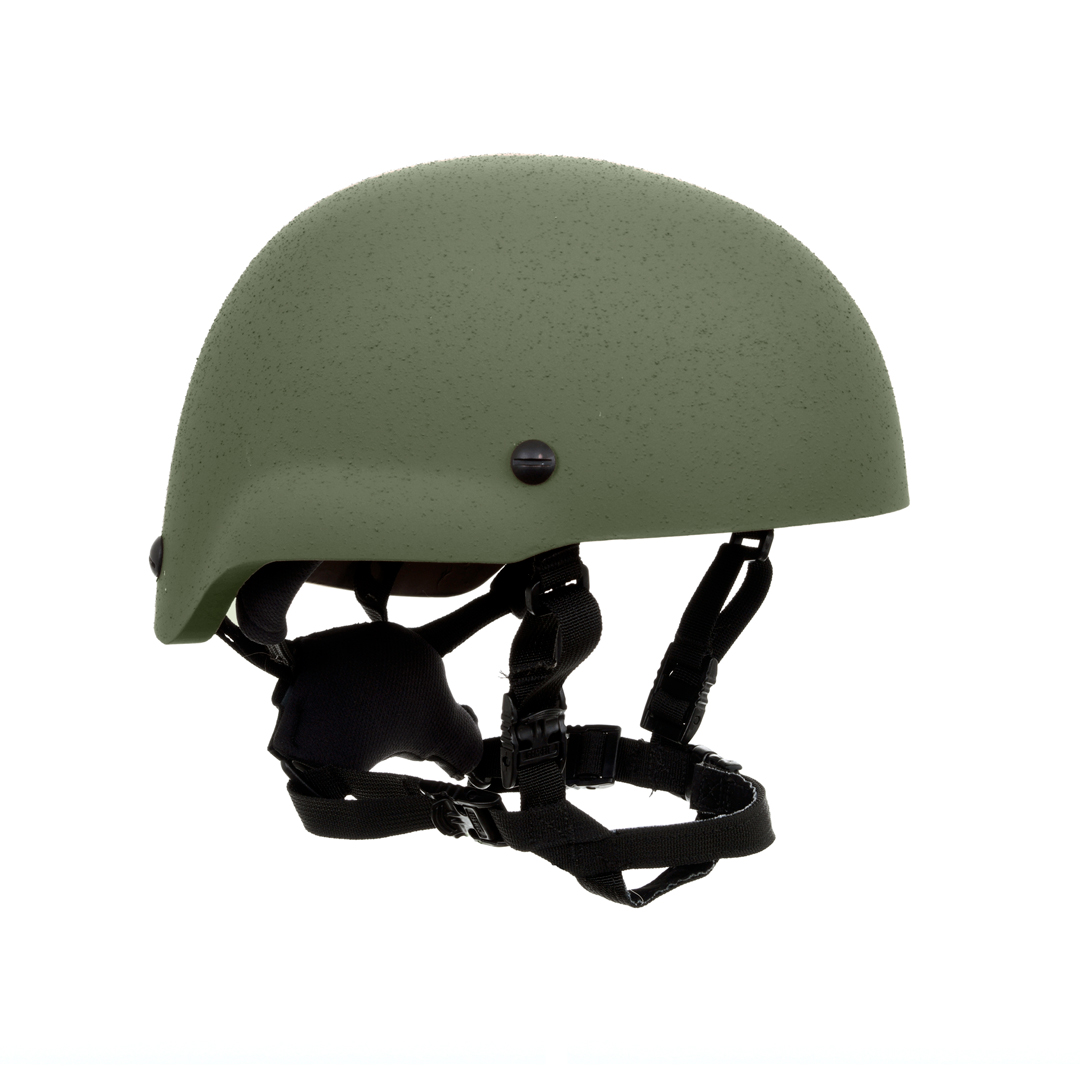

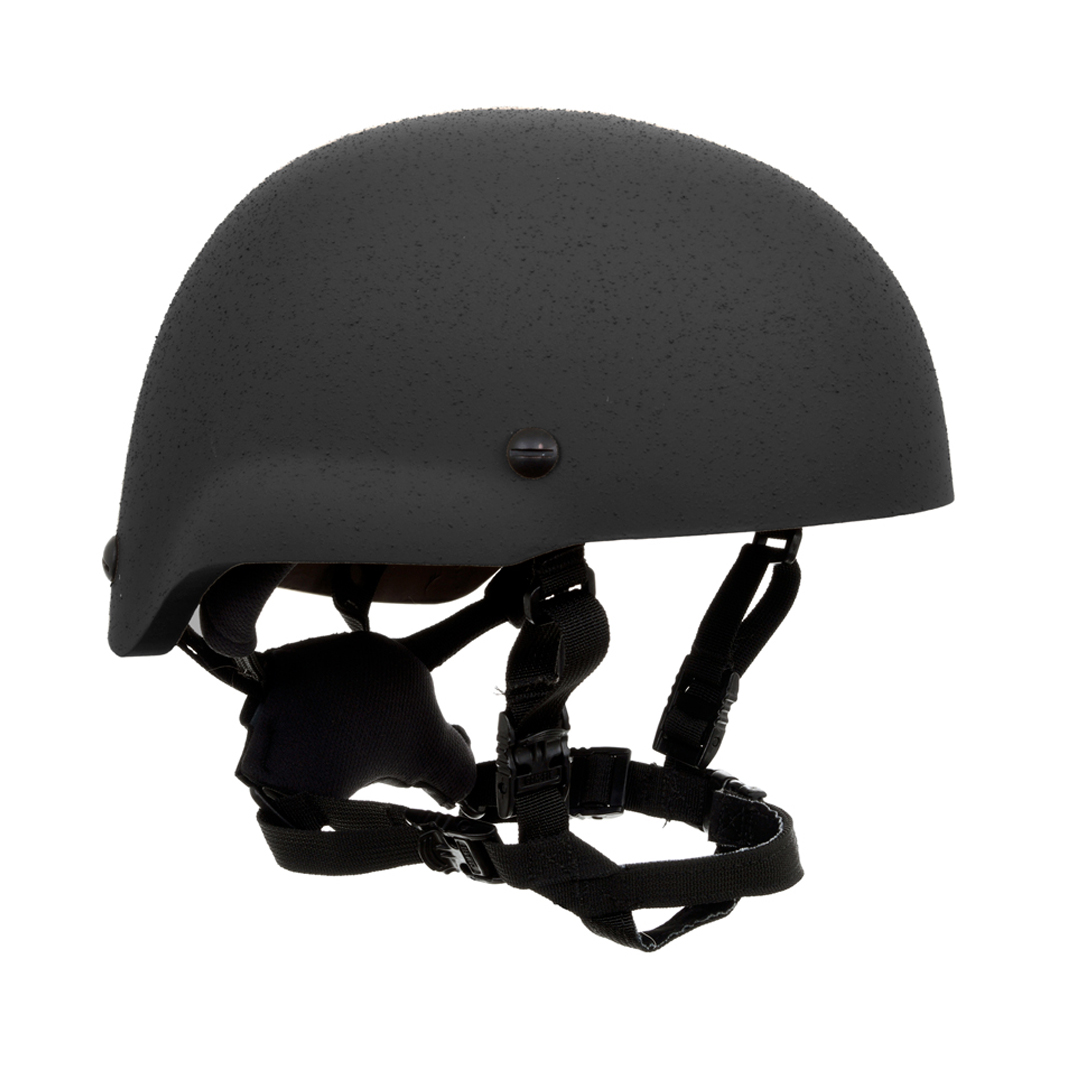

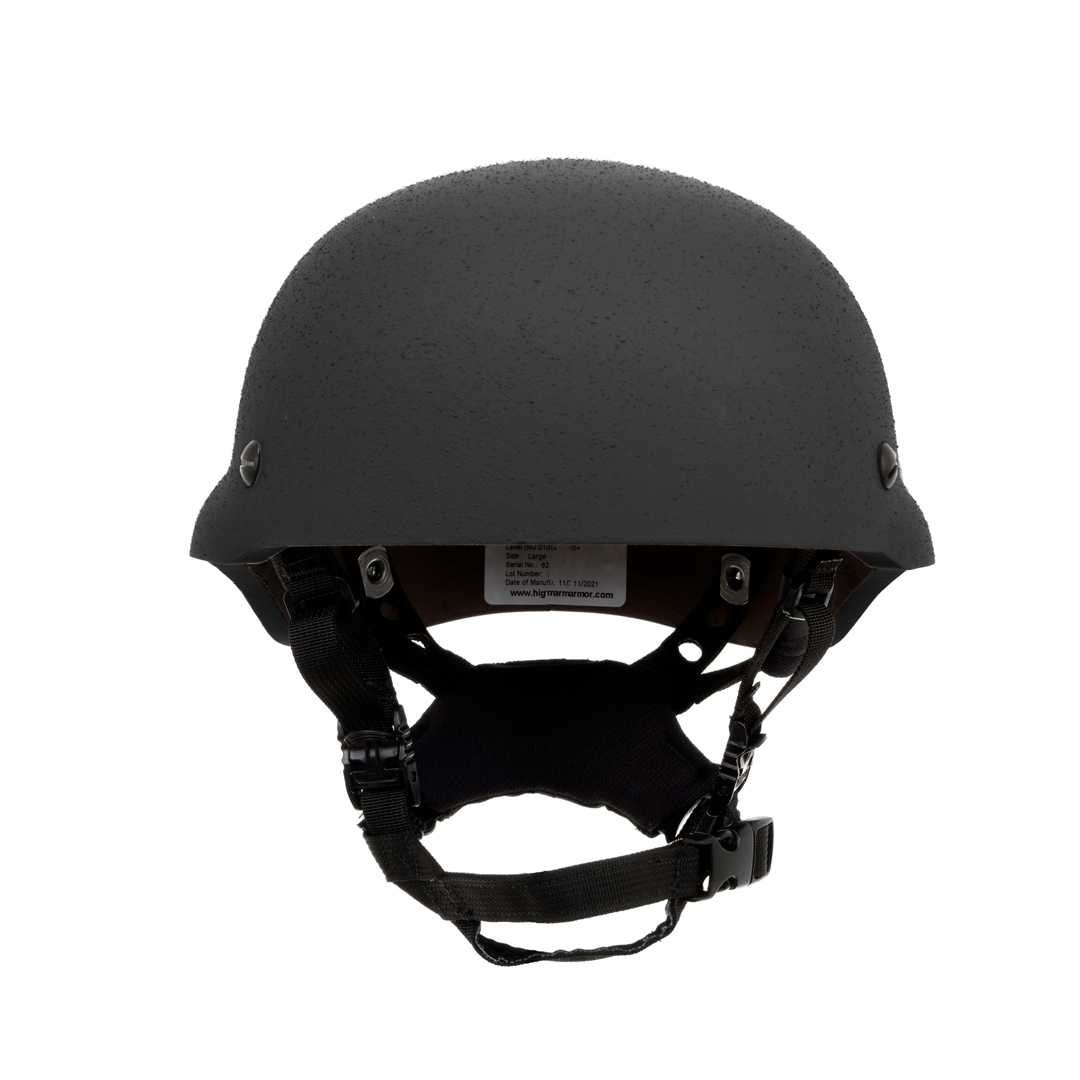

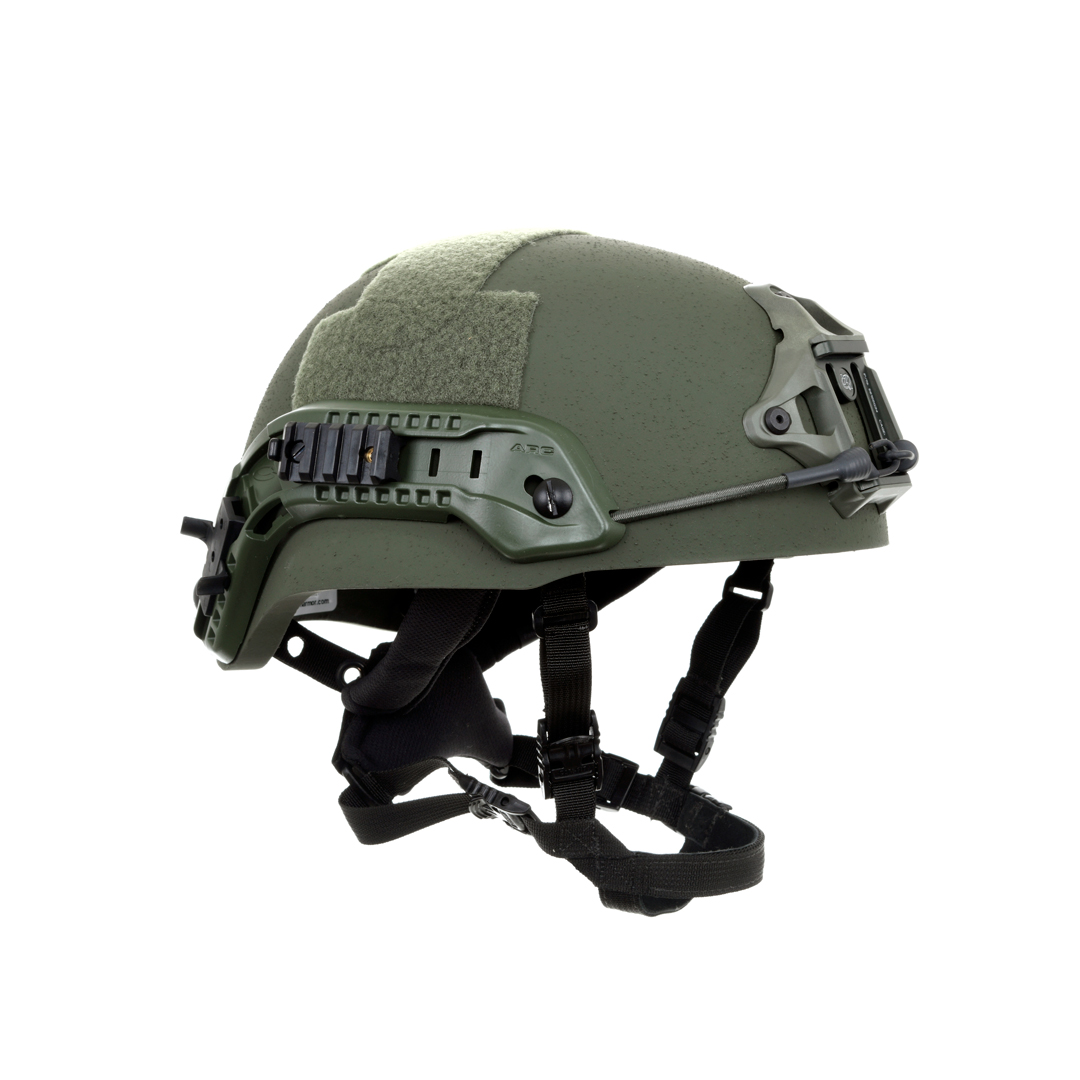

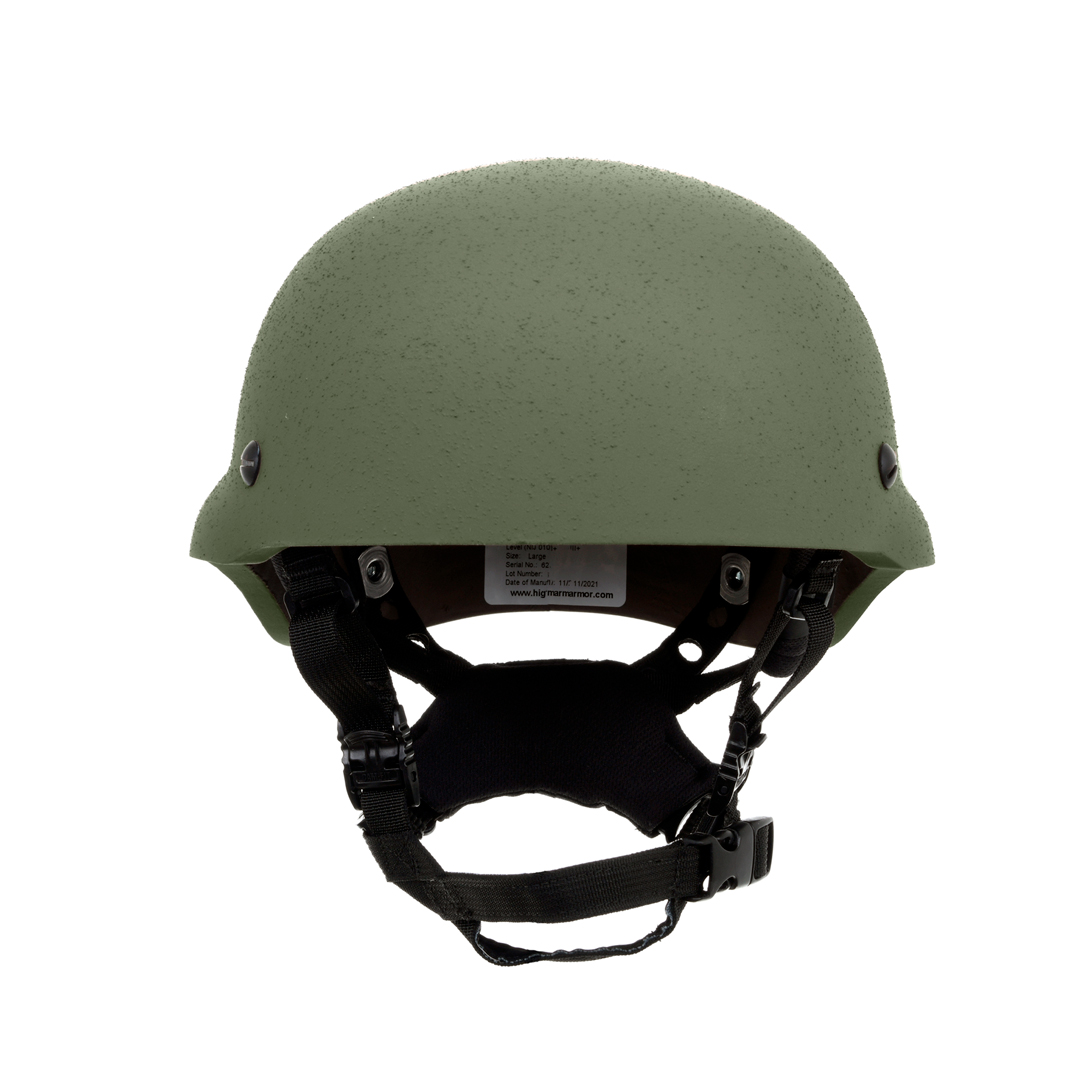

The Striker RCHMC™ (Rifle Combat Helmet Mid Cut) Level III+ helmet exceeds the U.S. military specifications for ballistic threats, fragmentation, and blunt impact. A true rifle rated helmet, the Striker RCHMC is capable of defeating rifle special threats including 7.62 x 51mm (M80), 7.62 x 39mm (M43 MSC), 5.56 x 45mm (M193 FMJ), as well as MIL-STD frag protection beyond any protective helmet currently in theatre.

  • Protection: Level III+ rifle rated ballistic helmet including frag protection
  • Rifle Special Threat Tested: According to U.S. DOD proprietary test requirements
  • MIL-STD-662F: This product has been independently tested by an NVLAP accredited NIJ approved laboratory against frag resistance as specified under MIL-STD-662F
  • XTclave: Made in XTclave™ ultra high-pressure consolidation. XTclave™ is a composite curing and consolidation technology that makes it possible to manufacture lighter, stronger and stiffer composite articles.
  • Materials: 100% UHMWPE DSM Dyneema®
  • Head Protection: Front, back, crown, and top of the head
  • Weight: 11 kg/m² areal density, 1.16 kg total weight (raw shell weight only, based on size large)
  • Thinness: 0.43” or 11mm
  • Retention: Helmet includes HighCom’s 4pt Retention Harness, multiple options available
  • Suspension: Comes standard with D3O® TRUST Stealth™ 7-pad system, multiple options available
  • Sizing: Circumference is measured around the head, similar to hat sizing. All sizes are measured in inches. If a measurement falls on a dividing line between sizes, select the larger of the two sizes to ensure maximum ballistic protection
  • Warranty: 5 years on all ballistic material excluding exterior cover, 1 year on exterior cover material and workmanship
PROJECTILEGRVEL FT/SVEL M/S(+/- FT/S)(+/- M/S)
7.62 x 51mm FMJ, Steel Jacketed Bullets (M80)1472750838(+/- 50)(+/- 15)
7.62 x 39mm (M43 MSC PS)123 2379725(+/- 50)(+/- 15)
5.56 x 45mm M193 FMJ553250991(+/- 50)(+/- 15)
9mm Full Metal Jacketed Round Nose (FMJ RN)1241400427(+/- 30)(+/- 9)
.44 Magnum Semi Jacketed Hollow Point (SJHP)2401400427 (+/- 30) (+/- 9)
PROJECTILEGRVEL FT/SVEL M/SV50 FT/SV50 M/S
US MIL-STD Frag 2 gr. RCC242001280>53911643
US MIL-STD Frag 4 gr. RCC434751059>51631574
US MIL-STD Frag 16 gr. RCC16247575440741242
US MIL-STD Frag 64 gr. RCC6417505332852869
US MIL-STD Frag 17 gr. FSP17220067141871276
US MIL-STD Frag 44 gr. FSP4417505333177969
SIZELENGTHWIDTHCIRCUMFERENCEWEIGHT
S7.1 to 7.6 5.6 to 6.021.1 to 21.93.2 lbs
M7.6 to 7.96.0 to 6.321.9 to 22.73.5 lbs
L7.9 to 8.36.3 to 6.522.7 to 243.6 lbs
XL8.3 to 8.86.5 to 7.124 to 263.8 lbs
